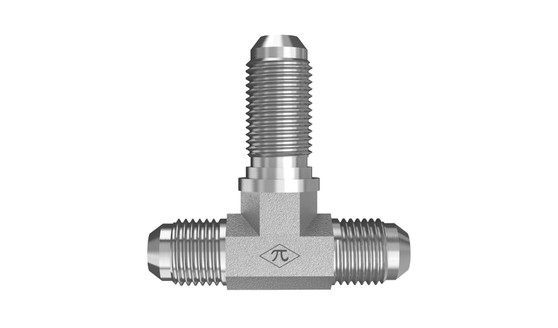

2703-FG series product image

2703-04-04-04-SS

1/4" Male JIC 37° Flare × 1/4" Male JIC 37° Flare × 1/4" Male JIC 37° Flare · Bulkhead Branch Tee

The HGW 2703-04-04-04-SS is a bulkhead branch tee joining 1/4" male JIC 37° flare connections across all 3 ports. Made from stainless steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Bulkhead Branch Tee
$39.09
(0) Write a Review
SKU:
2703-04-04-04-SS

Product Details

Connection A
TypeMale JIC 37° Flare
Tube OD1/4"
StandardSAE J514
Thread Type7/16-20 UNF
Connection B
TypeMale JIC 37° Flare
Tube OD1/4"
StandardSAE J514
Thread Type7/16-20 UNF
Connection C
TypeMale JIC 37° Flare
Tube OD1/4"
StandardSAE J514
Thread Type7/16-20 UNF
Connection D
Specifications
MaterialStainless Steel
Weight0.11 lb
ShapeBulkhead Branch Tee
Cross References
Aeroquip259-203002-1-4-4
Parker4 WJTX-SS
SAE Ref.SAE J514 4-4-4 070959S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
