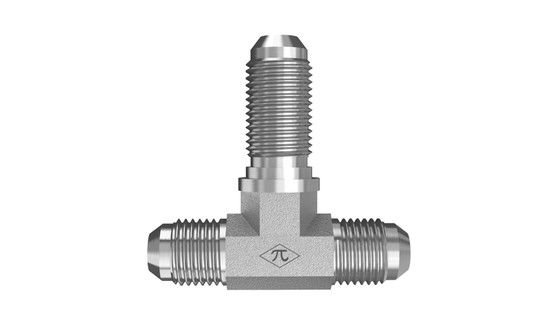

2703-FG series product image

2703-04-04-06-FG

1/4" Male JIC x 1/4" Male JIC x 3/8" Male JIC

2703-04-04-06-FG is a 1/4" Male JIC x 1/4" Male JIC x 3/8" Male JIC in the 2703-FG Series. SAE J514 37° Flare Bulkhead Branch Tee.

  • Steel
  • Trivalent Zinc
  • Bulkhead Branch Tee
$19.49
(0) Write a Review
SKU:
2703-04-04-06-FG

Product Details

Connection A
TypeMale JIC
Tube OD1/4"
StandardSAE J514
Thread Type7/16-20 UNF
Connection B
TypeMale JIC
Tube OD1/4"
StandardSAE J514
Thread Type7/16-20 UNF
Connection C
TypeMale JIC
Tube OD3/8"
StandardSAE J514
Thread Type7/16-20 UNF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.16 lb
ShapeBulkhead Branch Tee
Cross References
Aeroquip203002-1-6-4S
Parker4-4-6 WJTX-S
SAE Ref.SAE J514 4-4-6 070959C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
