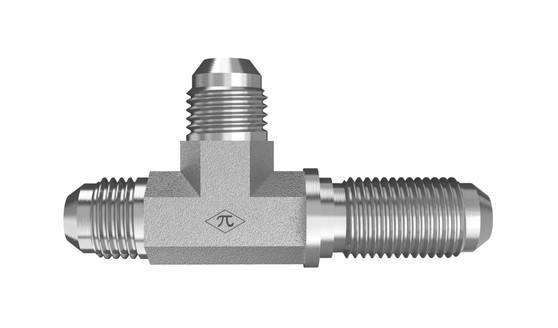

2704-FG series product image

2704-04-04-04-FG

1/4" Male JIC x 1/4" Male JIC x 1/4" Male JIC

2704-04-04-04-FG is a 1/4" Male JIC x 1/4" Male JIC x 1/4" Male JIC in the 2704-FG Series. SAE J514 37° Flare Bulkhead Run Tee.

  • Steel
  • Trivalent Zinc
  • Bulkhead Run Tee
$4.31
(0) Write a Review
SKU:
2704-04-04-04-FG

Product Details

Connection A
TypeMale JIC
Tube OD1/4"
StandardSAE J514
Thread Type7/16-20 UNF
Connection B
TypeMale JIC
Tube OD1/4"
StandardSAE J514
Thread Type7/16-20 UNF
Connection C
TypeMale JIC
Tube OD1/4"
StandardSAE J514
Thread Type7/16-20 UNF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.10 lb
ShapeBulkhead Run Tee
Cross References
AeroquipFF1065-0404S
Parker4 WJJTX-S
SAE Ref.SAE J514 4-4-4 070958C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
