2704-04-04-04-SS

1/4" Male JIC x 1/4" Male JIC x 1/4" Male JIC

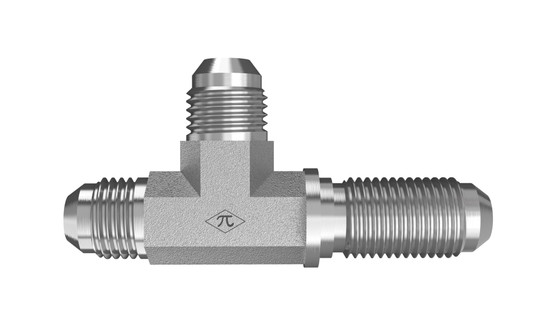

2704-04-04-04-SS is a 1/4" Male JIC x 1/4" Male JIC x 1/4" Male JIC in the 2704-FG Series. SAE J514 37° Flare Bulkhead Run Tee.

  • Stainless Steel
  • Bulkhead Run Tee
  • None
$36.40
(0) Write a Review
SKU:
2704-04-04-04-SS

Product Details

Connection A
TypeMale JIC
Tube OD1/4"
StandardSAE J514
Thread Type7/16-20 UNF
Connection B
TypeMale JIC
Tube OD1/4"
StandardSAE J514
Thread Type7/16-20 UNF
Connection C
TypeMale JIC
Tube OD1/4"
StandardSAE J514
Thread Type7/16-20 UNF
Connection D
Specifications
MaterialStainless Steel
Weight0.11 lb
ShapeBulkhead Run Tee
PlatingNone
Cross References
Aeroquip259-FF1065-4-4
Parker4 WJJTX-SS
SAE Ref.SAE J514 4-4-4 070958S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
