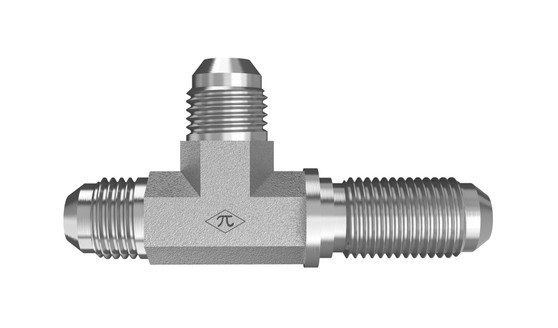

2704-FG series product image

2704-08-08-08-FG

1/2" Male JIC x 1/2" Male JIC x 1/2" Male JIC

2704-08-08-08-FG is a 1/2" Male JIC x 1/2" Male JIC x 1/2" Male JIC in the 2704-FG Series. SAE J514 37° Flare Bulkhead Run Tee.

  • Steel
  • Trivalent Zinc
  • Bulkhead Run Tee
$8.36
(0) Write a Review
SKU:
2704-08-08-08-FG

Product Details

Connection A
TypeMale JIC
Tube OD1/2"
StandardSAE J514
Thread Type3/4-16 UNF
Connection B
TypeMale JIC
Tube OD1/2"
StandardSAE J514
Thread Type3/4-16 UNF
Connection C
TypeMale JIC
Tube OD1/2"
StandardSAE J514
Thread Type3/4-16 UNF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.37 lb
ShapeBulkhead Run Tee
Cross References
AeroquipFF1065-0808S
Parker8 WJJTX-S
SAE Ref.SAE J514 8-8-8 070958C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
