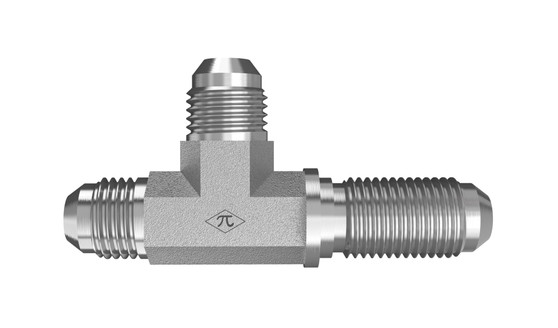

2704-FG series product image

2704-16-16-16-SS

1" Male JIC 37° Flare × 1" Male JIC 37° Flare × 1" Male JIC 37° Flare · Bulkhead Run Tee

The HGW 2704-16-16-16-SS is a bulkhead run tee joining 1" male JIC 37° flare connections across all 3 ports. Made from stainless steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Bulkhead Run Tee
$651.09
(0) Write a Review
SKU:
2704-16-16-16-SS

Product Details

Connection A
TypeMale JIC 37° Flare
Tube OD1"
StandardSAE J514
Thread Type1-5/16-12 UN
Connection B
TypeMale JIC 37° Flare
Tube OD1"
StandardSAE J514
Thread Type1-5/16-12 UN
Connection C
TypeMale JIC 37° Flare
Tube OD1"
StandardSAE J514
Thread Type1-5/16-12 UN
Connection D
Specifications
MaterialStainless Steel
Weight1.25 lb
ShapeBulkhead Run Tee
Cross References
Aeroquip259-FF1065-16-16
Parker16 WJJTX-SS
SAE Ref.SAE J514 16-16-16 070958S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
