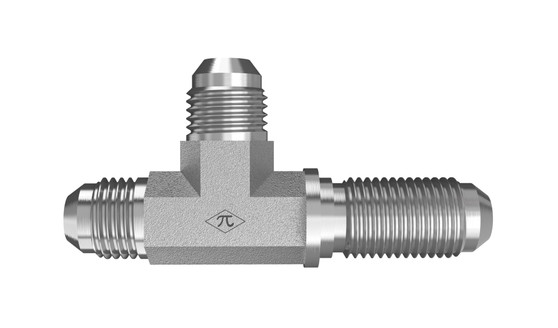

2704-FG series product image

2704-24-24-24-SS

1-1/2" Male JIC x 1-1/2" Male JIC x 1-1/2" Male JIC

2704-24-24-24-SS is a 1-1/2" Male JIC x 1-1/2" Male JIC x 1-1/2" Male JIC in the 2704-FG Series. SAE J514 37° Flare Bulkhead Run Tee.

  • Stainless Steel
  • Bulkhead Run Tee
  • None
$1,211.77
(0) Write a Review
SKU:
2704-24-24-24-SS

Product Details

Connection A
TypeMale JIC
Tube OD1-1/2"
StandardSAE J514
Thread Type1-7/8-12 UN
Connection B
TypeMale JIC
Tube OD1-1/2"
StandardSAE J514
Thread Type1-7/8-12 UN
Connection C
TypeMale JIC
Tube OD1-1/2"
StandardSAE J514
Thread Type1-7/8-12 UN
Connection D
Specifications
MaterialStainless Steel
Weight2.70 lb
ShapeBulkhead Run Tee
PlatingNone
Cross References
Aeroquip259-FF1065-24-24
Parker24 WJJTX-SS
SAE Ref.SAE J514 24-24-24 070958S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
