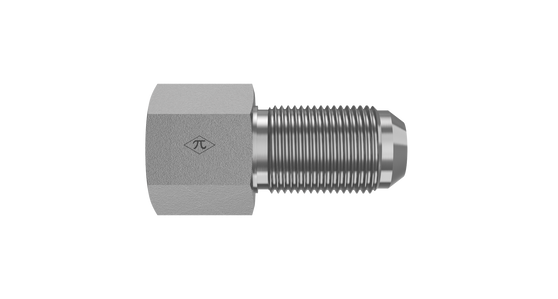

HGW 2705 shared series image [1ed417b1cfb1]

HGW HYDRAULICS

2705-02-04-SS

1/8" Female NPTF × 1/4" Male JIC 37° Flare · Female Bulkhead

The HGW 2705-02-04-SS is a female bulkhead joining 1/8" female NPTF to 1/4" male JIC 37° flare. Made from stainless steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Passivated
  • Female Bulkhead
$28.36
(0) Write a Review
SKU:
2705-02-04-SS

Product Details

Connection A
TypeFemale NPTF
Pipe Size1/8"
StandardSAE J476
Thread Type1/8-27 NPTF
Connection B
TypeMale JIC 37° Flare
Tube OD1/4"
StandardSAE J514 · Class 2A Thread
Thread Type1/8-27 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeFemale Bulkhead
Weight0.10 lb
Cross References
Aeroquip259-2239-1-2-4
Parker4 WGTX-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
