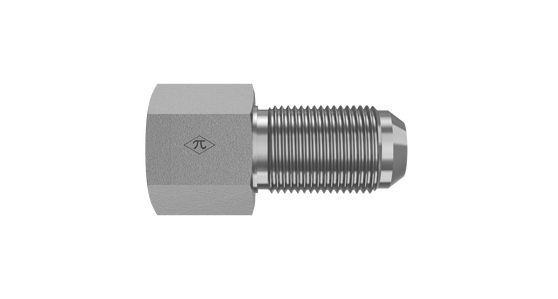

HGW 2705 shared series image [1ed417b1cfb1]

HGW HYDRAULICS

2705-02-05

1/8" Female NPTF × 5/16" Male JIC 37° Flare · Female Bulkhead

The HGW 2705-02-05 is a female bulkhead joining 1/8" female NPTF to 5/16" male JIC 37° flare. Made from trivalent-zinc-plated steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Bulkhead
$51.65
(0) Write a Review
SKU:
2705-02-05

Product Details

Connection A
TypeFemale NPTF
Pipe Size1/8"
StandardSAE J476
Thread Type1/8-27 NPTF
Connection B
TypeMale JIC 37° Flare
Tube OD5/16"
StandardSAE J514 · Class 2A Thread
Thread Type1/8-27 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Bulkhead
Weight0.11 lb
Cross References
Aeroquip2239-1-2-5S
Parker5 WGTX-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
