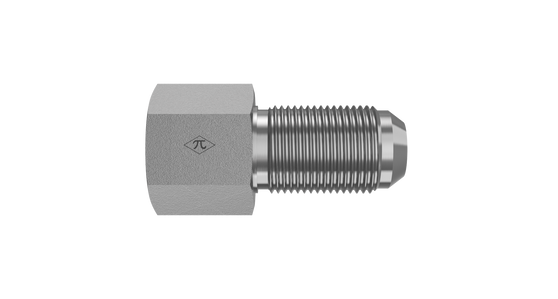

HGW 2705 shared series image [1ed417b1cfb1]

HGW HYDRAULICS

2705-04-02

1/4" Female NPTF 30° x 1/8" Male JIC

2705-04-02 is a 1/4" Female NPTF 30° x 1/8" Male JIC in the 2705 Series. For connecting a male pipe thread through a panel or wall to a 37° flared tube or line in a straight configuration.

  • Steel
  • Trivalent Zinc
  • Female Bulkhead
$4.01
(0) Write a Review
SKU:
2705-04-02

Product Details

Connection A
TypeFemale NPTF 30°
Pipe Size1/4"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection B
TypeMale JIC
Tube OD1/8"
StandardSAE J514 - Class 2A Thread
Thread Type1/4-18 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Bulkhead
Weight0.10 lb
Cross References
Aeroquip2239-1-4-2S
Parker2-4 WGTX-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
