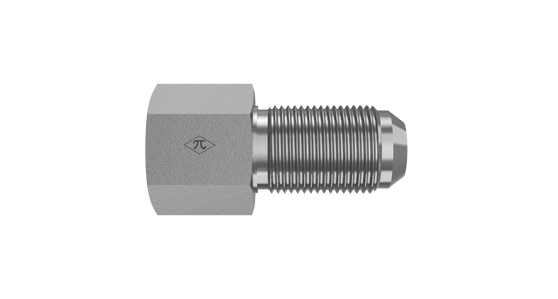

HGW 2705 shared series image [1ed417b1cfb1]

HGW HYDRAULICS

2705-04-04-SS

1/4" Female NPTF 30° x 1/4" Male JIC

2705-04-04-SS is a 1/4" Female NPTF 30° x 1/4" Male JIC in the 2705 Series. For connecting a male pipe thread through a panel or wall to a 37° flared tube or line in a straight configuration.

  • Stainless Steel
  • Passivated
  • Female Bulkhead
$20.93
(0) Write a Review
SKU:
2705-04-04-SS

Product Details

Connection A
TypeFemale NPTF 30°
Pipe Size1/4"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection B
TypeMale JIC
Tube OD1/4"
StandardSAE J514 - Class 2A Thread
Thread Type1/4-18 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeFemale Bulkhead
Weight0.13 lb
Cross References
Aeroquip259-2239-1-4-4
Parker4-4 WGTX-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
