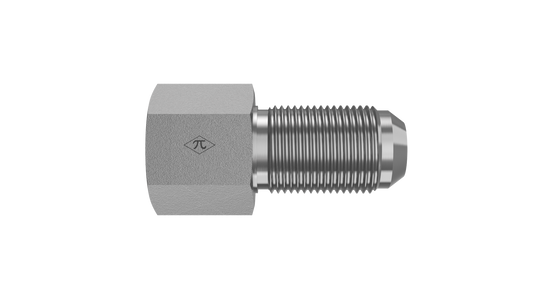

HGW 2705 shared series image [1ed417b1cfb1]

HGW HYDRAULICS

2705-06-08-B

3/8" Female NPTF 30° x 1/2" Male JIC

2705-06-08-B is a 3/8" Female NPTF 30° x 1/2" Male JIC in the 2705 Series. For connecting a male pipe thread through a panel or wall to a 37° flared tube or line in a straight configuration.

  • Brass
  • Natural Finish
  • Female Bulkhead
$164.88
(0) Write a Review
SKU:
2705-06-08-B

Product Details

Connection A
TypeFemale NPTF 30°
Pipe Size3/8"
StandardSAE J476
Thread Type3/8-18 NPTF
Connection B
TypeMale JIC
Tube OD1/2"
StandardSAE J514 - Class 2A Thread
Thread Type3/8-18 NPTF
Connection C
Connection D
Specifications
MaterialBrass
PlatingNatural Finish
ShapeFemale Bulkhead
Weight0.29 lb
Cross References
Aeroquip2239-1-6-8B
Parker8 WGTX-B

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
