HGW HYDRAULICS

2705-08-10-SS

1/2" Female NPTF 30° x 5/8" Male JIC

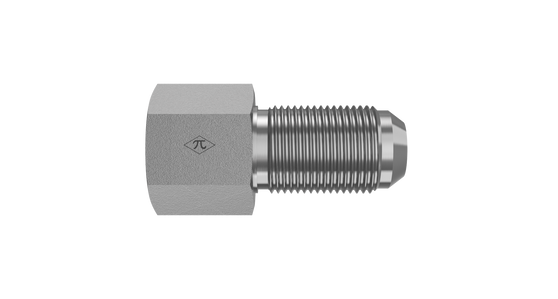

2705-08-10-SS is a 1/2" Female NPTF 30° x 5/8" Male JIC in the 2705 Series. For connecting a male pipe thread through a panel or wall to a 37° flared tube or line in a straight configuration.

  • Stainless Steel
  • Passivated
  • Female Bulkhead
$258.75
(0) Write a Review
SKU:
2705-08-10-SS

Product Details

Connection A
TypeFemale NPTF 30°
Pipe Size1/2"
StandardSAE J476
Thread Type1/2-14 NPTF
Connection B
TypeMale JIC
Tube OD5/8"
StandardSAE J514 - Class 2A Thread
Thread Type1/2-14 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeFemale Bulkhead
Weight0.30 lb
Cross References
Aeroquip259-2239-1-8-10
Parker10 WGTX-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
