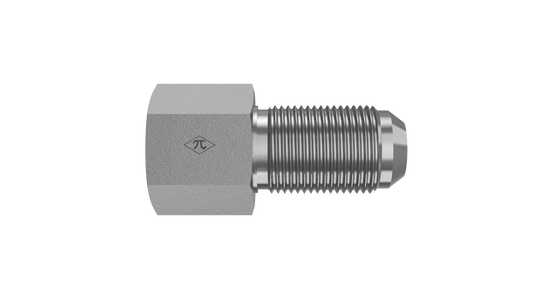

HGW 2705 shared series image [1ed417b1cfb1]

HGW HYDRAULICS

2705-16-16

1" Female NPTF × 1" Male JIC 37° Flare · Female Bulkhead

The HGW 2705-16-16 is a female bulkhead joining 1" female NPTF to 1" male JIC 37° flare. Made from trivalent-zinc-plated steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Bulkhead
$12.90
(0) Write a Review
SKU:
2705-16-16

Product Details

Connection A
TypeFemale NPTF
Pipe Size1"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection B
TypeMale JIC 37° Flare
Tube OD1"
StandardSAE J514 · Class 2A Thread
Thread Type1-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Bulkhead
Weight0.86 lb
Cross References
Aeroquip2239-1-16-16S
Parker16 WGTX-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
