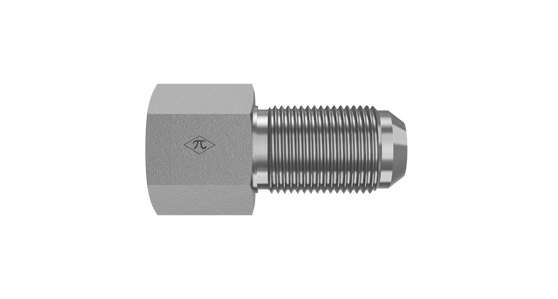

HGW 2705 shared series image [1ed417b1cfb1]

HGW HYDRAULICS

2705-24-24-SS

1-1/2" Female NPTF 30° x 1-1/2" Male JIC

2705-24-24-SS is a 1-1/2" Female NPTF 30° x 1-1/2" Male JIC in the 2705 Series. For connecting a male pipe thread through a panel or wall to a 37° flared tube or line in a straight configuration.

  • Stainless Steel
  • Passivated
  • Female Bulkhead
$686.96
(0) Write a Review
SKU:
2705-24-24-SS

Product Details

Connection A
TypeFemale NPTF 30°
Pipe Size1-1/2"
StandardSAE J476
Thread Type1-1/2-11-1/2 NPTF
Connection B
TypeMale JIC
Tube OD1-1/2"
StandardSAE J514 - Class 2A Thread
Thread Type1-1/2-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeFemale Bulkhead
Weight1.40 lb
Cross References
Aeroquip259-2239-1-24-24
Parker24 WGTX-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
