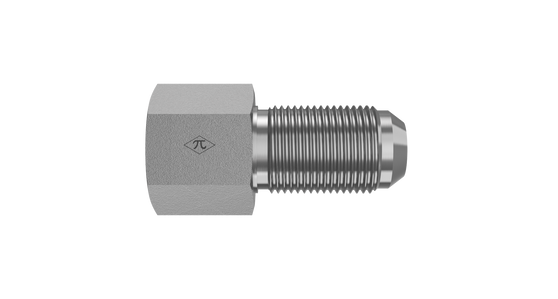

HGW 2705 shared series image [1ed417b1cfb1]

HGW HYDRAULICS

2705-24-24

1-1/2" Female NPTF × 1-1/2" Male JIC 37° Flare · Female Bulkhead

The HGW 2705-24-24 is a female bulkhead joining 1-1/2" female NPTF to 1-1/2" male JIC 37° flare. Made from trivalent-zinc-plated steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Bulkhead
$38.24
(0) Write a Review
SKU:
2705-24-24

Product Details

Connection A
TypeFemale NPTF
Pipe Size1-1/2"
StandardSAE J476
Thread Type1-1/2-11-1/2 NPTF
Connection B
TypeMale JIC 37° Flare
Tube OD1-1/2"
StandardSAE J514 · Class 2A Thread
Thread Type1-1/2-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Bulkhead
Weight1.72 lb
Cross References
Aeroquip2239-1-24-24S
Parker24 WGTX-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
