HGW HYDRAULICS

2705-32-32

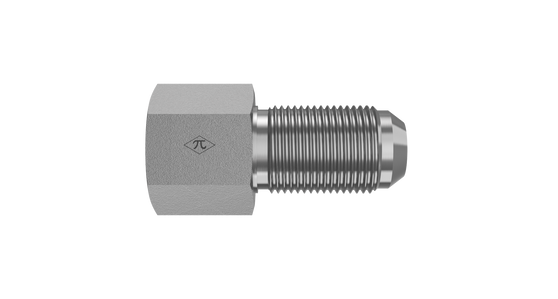

2" Female NPTF 30° x 2" Male JIC

2705-32-32 is a 2" Female NPTF 30° x 2" Male JIC in the 2705 Series. For connecting a male pipe thread through a panel or wall to a 37° flared tube or line in a straight configuration.

  • Steel
  • Trivalent Zinc
  • Female Bulkhead
$324.88
(0) Write a Review
SKU:
2705-32-32

Product Details

Connection A
TypeFemale NPTF 30°
Pipe Size2"
StandardSAE J476
Thread Type2-11-1/2 NPTF
Connection B
TypeMale JIC
Tube OD2"
StandardSAE J514 - Class 2A Thread
Thread Type2-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Bulkhead
Weight2.70 lb
Cross References
Aeroquip2239-1-32-32S
Parker32 WGTX-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
