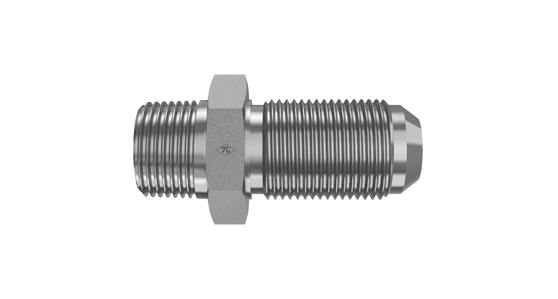

HGW 2706 shared series image [cf14f3de6ad2]

HGW HYDRAULICS

2706-12-16-SS

3/4" Male JIC x 1" Male NPTF 30°

2706-12-16-SS is a 3/4" Male JIC x 1" Male NPTF 30° in the 2706 Series. For routing a 37° flared tube or line through a panel or wall to a male pipe thread, with the bulkhead end mounting through the panel.

  • Stainless Steel
  • Passivated
  • Male Bulkhead
$136.88
(0) Write a Review
SKU:
2706-12-16-SS

Product Details

Connection A
TypeMale JIC
Tube OD3/4"
StandardSAE J514 - Class 2A Thread
Thread Type3/4-14 NPTF
Connection B
TypeMale NPTF 30°
Pipe Size1"
StandardSAE J476
Thread Type3/4-14 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeMale Bulkhead
Weight0.64 lb
Cross References
Aeroquip259-2240-1-12-16
Parker16-12 WFTX-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
