HGW HYDRAULICS

3474-02-02-NWO-SS

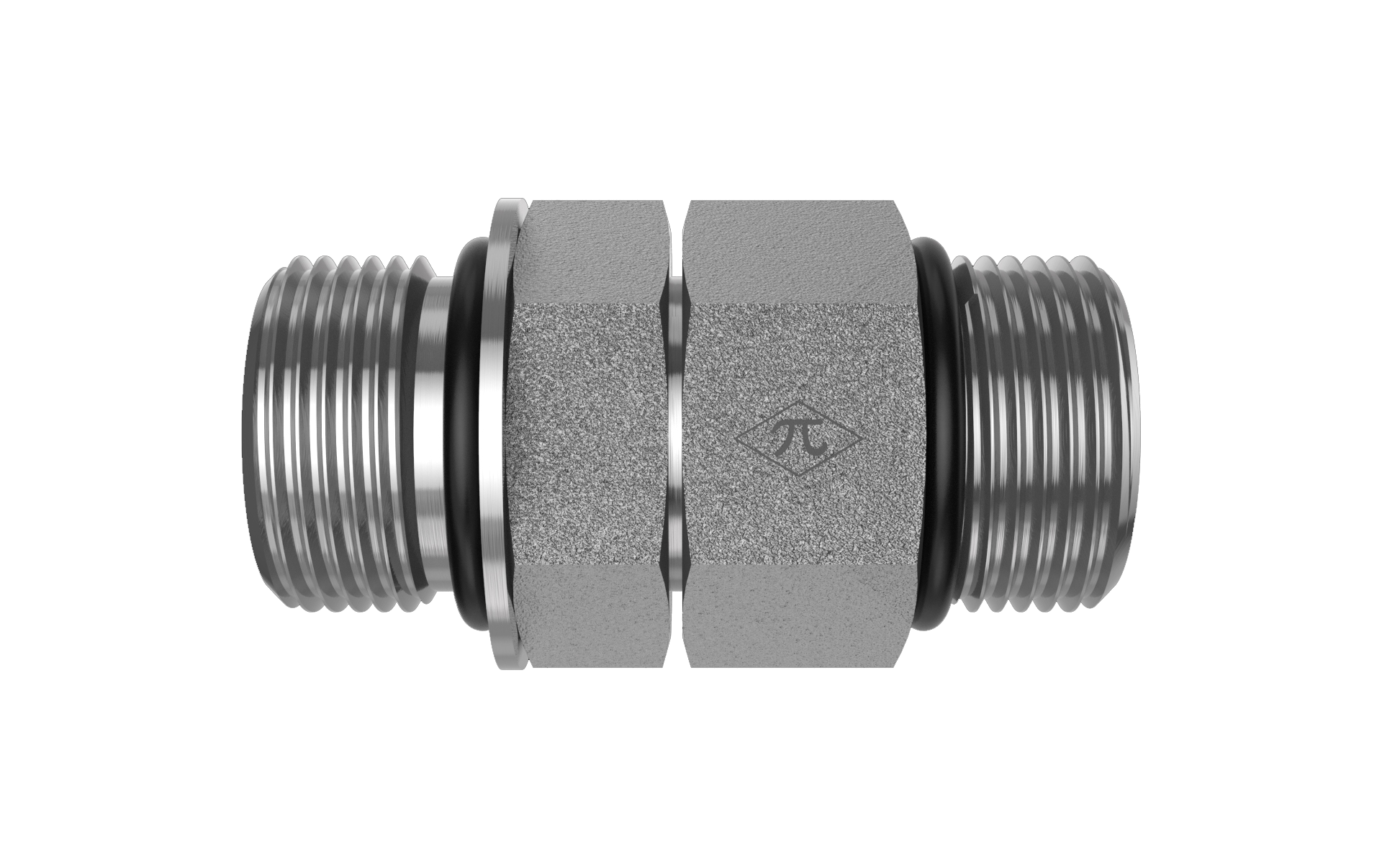

5/16-24 Male Adjustable ORB x 5/16-24 Male ORB

3474-02-02-NWO-SS is a 5/16-24 Male Adjustable ORB x 5/16-24 Male ORB in the 3474-NWO Series. For connecting two SAE ports using an adjustable nut for alignment.

  • Stainless Steel
  • Nipple
  • None
$133.18
(0) Write a Review

Product Details

Connection A
TypeMale Adjustable ORB
Port Size5/16-24
StandardSAE J1926
Thread Type5/16-24 UNF
Connection B
TypeMale ORB
Port Size5/16-24
StandardSAE J1926
Thread Type5/16-24 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeNipple
Weight0.04 lb
PlatingNone
Cross References
Aeroquip259-2220-2-2
Parker2 F5OHAO-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
