HGW HYDRAULICS

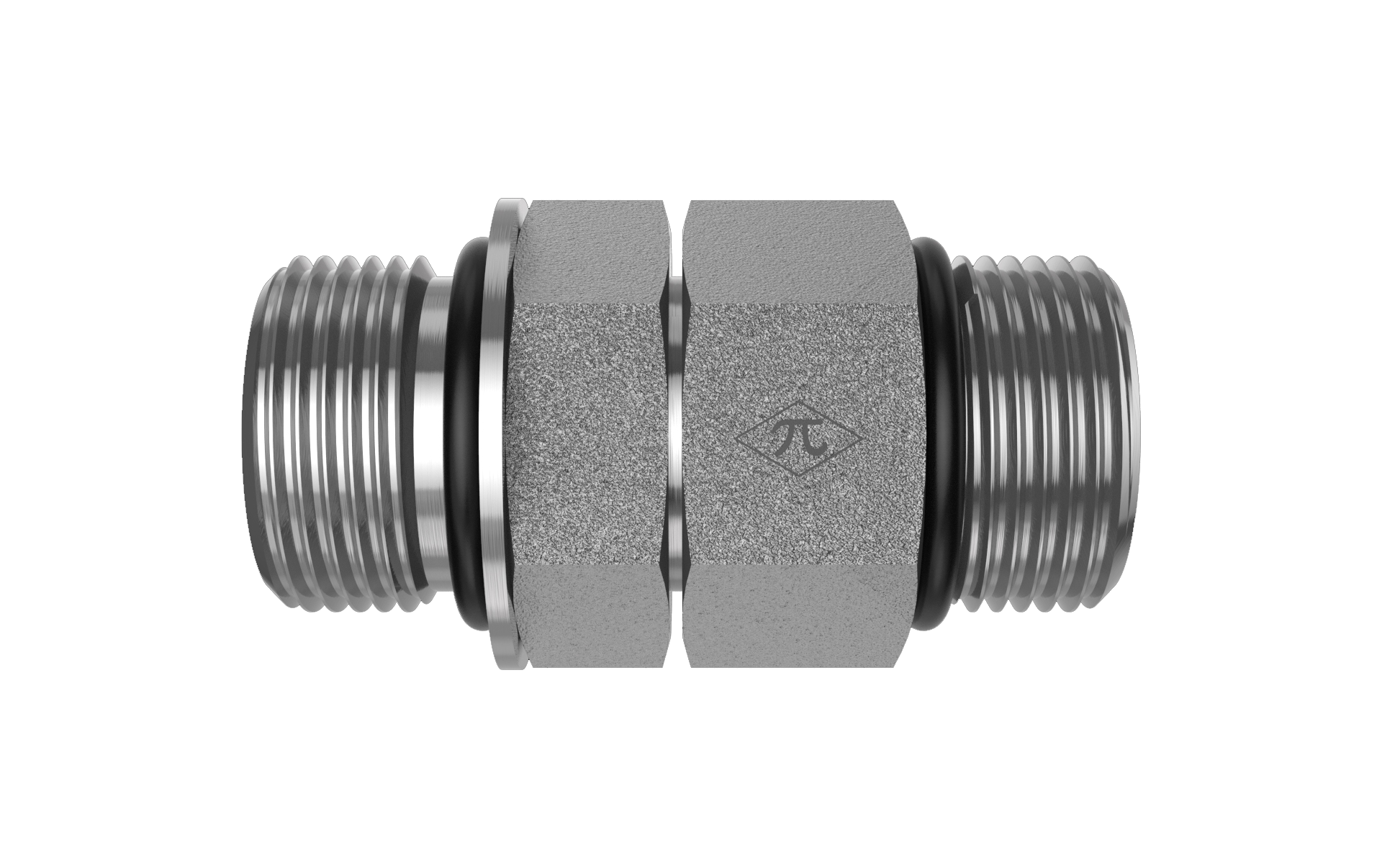

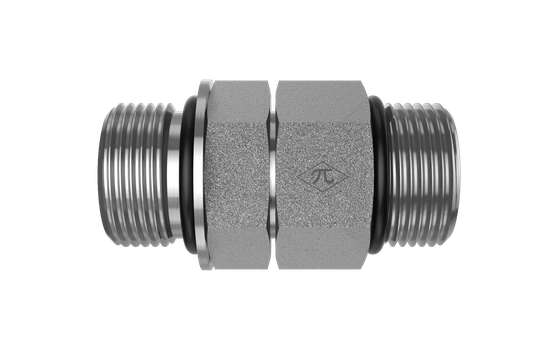

3474-04-04-NWO-SS

7/16-20 Male Adjustable ORB x 7/16-20 Male ORB

3474-04-04-NWO-SS is a 7/16-20 Male Adjustable ORB x 7/16-20 Male ORB in the 3474-NWO Series. For connecting two SAE ports using an adjustable nut for alignment.

  • Stainless Steel
  • Nipple
  • None
$63.18
(0) Write a Review

Product Details

Connection A
TypeMale Adjustable ORB
Port Size7/16-20
StandardSAE J1926
Thread Type7/16-20 UNF
Connection B
TypeMale ORB
Port Size7/16-20
StandardSAE J1926
Thread Type7/16-20 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeNipple
Weight0.08 lb
PlatingNone
Cross References
Aeroquip259-2220-4-4
Parker4 F5OHAO-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
