HGW HYDRAULICS

3474-04-04-NWO

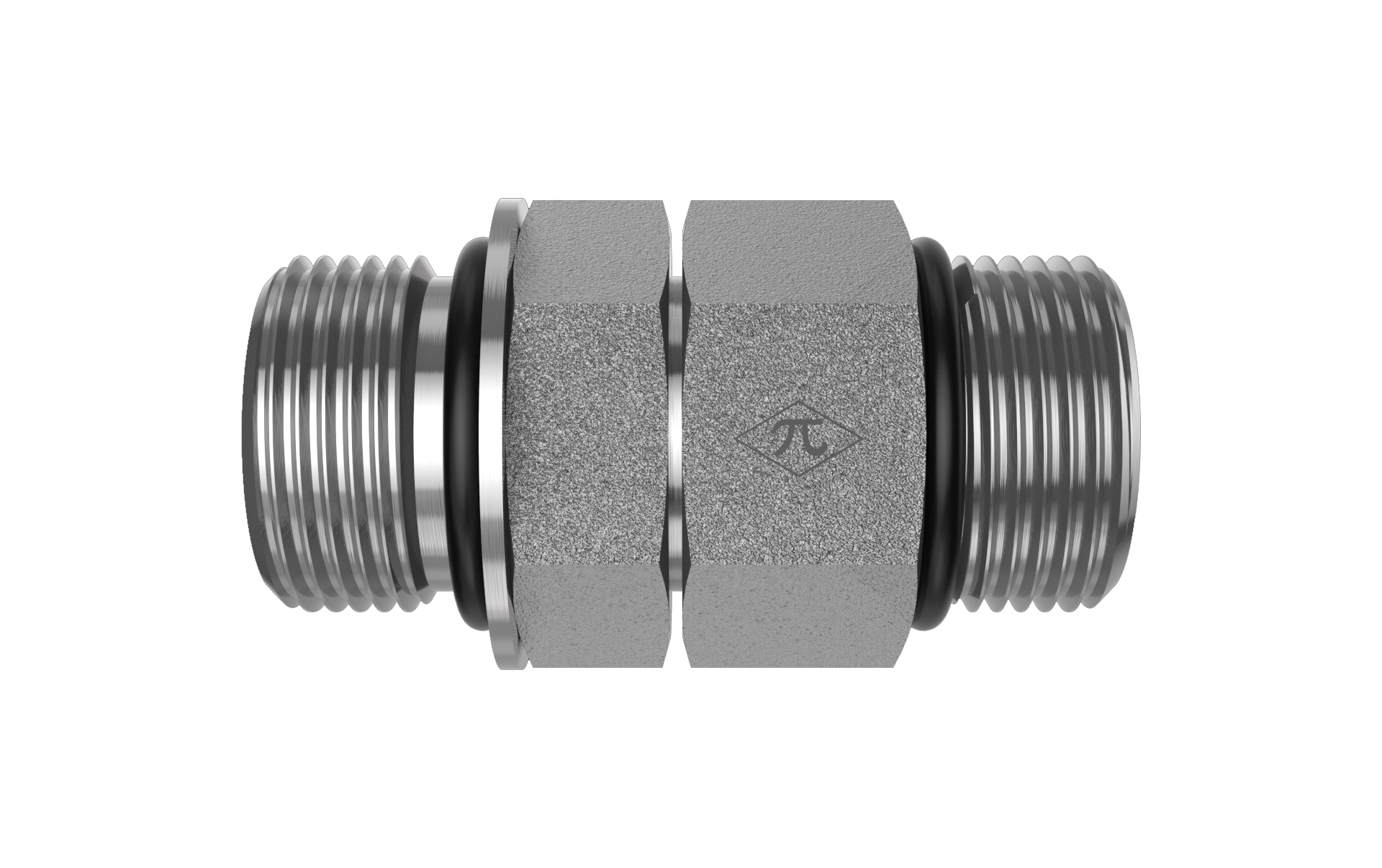

7/16-20 Male Adjustable ORB x 7/16-20 Male ORB

3474-04-04-NWO is a 7/16-20 Male Adjustable ORB x 7/16-20 Male ORB in the 3474-NWO Series. For connecting two SAE ports using an adjustable nut for alignment.

  • Steel
  • Trivalent Zinc
  • Nipple
$4.03
(0) Write a Review

Product Details

Connection A
TypeMale Adjustable ORB
Port Size7/16-20
StandardSAE J1926
Thread Type7/16-20 UNF
Connection B
TypeMale ORB
Port Size7/16-20
StandardSAE J1926
Thread Type7/16-20 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeNipple
Weight0.07 lb
Cross References
Aeroquip2220-4-4S
Parker4 F5OHAO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
