HGW HYDRAULICS

3474-06-06-NWO-VITON

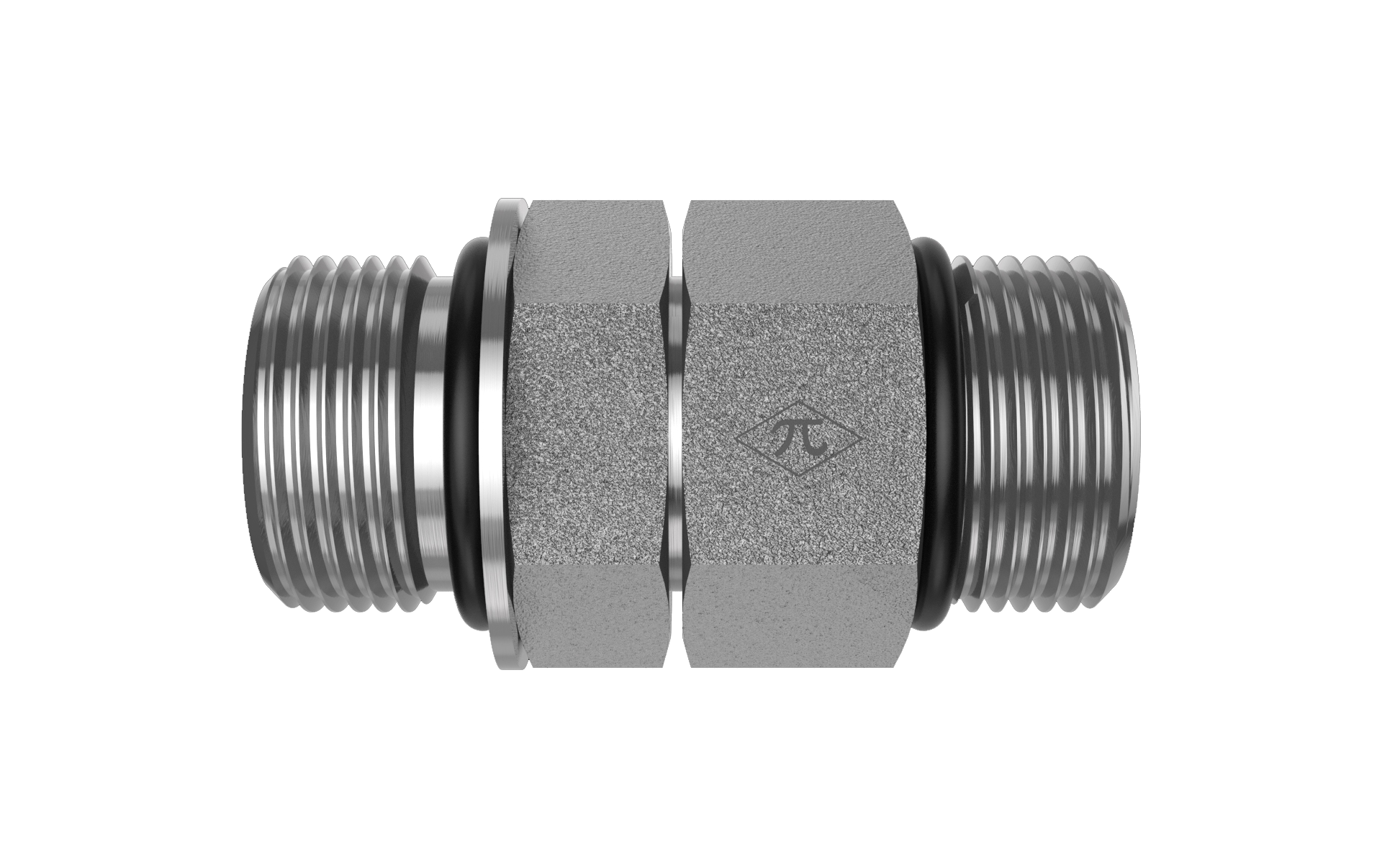

9/16-18 Male Adjustable ORB x 9/16-18 Male ORB

3474-06-06-NWO-VITON is a 9/16-18 Male Adjustable ORB x 9/16-18 Male ORB in the 3474-NWO Series. For connecting two SAE ports using an adjustable nut for alignment.

  • Steel
  • Trivalent Zinc
  • Nipple
$11.08
(0) Write a Review

Product Details

Connection A
TypeMale Adjustable ORB
Port Size9/16-18
StandardSAE J1926
Thread Type9/16-18 UNF
Connection B
TypeMale ORB
Port Size9/16-18
StandardSAE J1926
Thread Type9/16-18 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeNipple
Weight0.11 lb
Cross References
Aeroquip213-2220-6-6
Parker6 F5OHAO-S FKM

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
