HGW HYDRAULICS

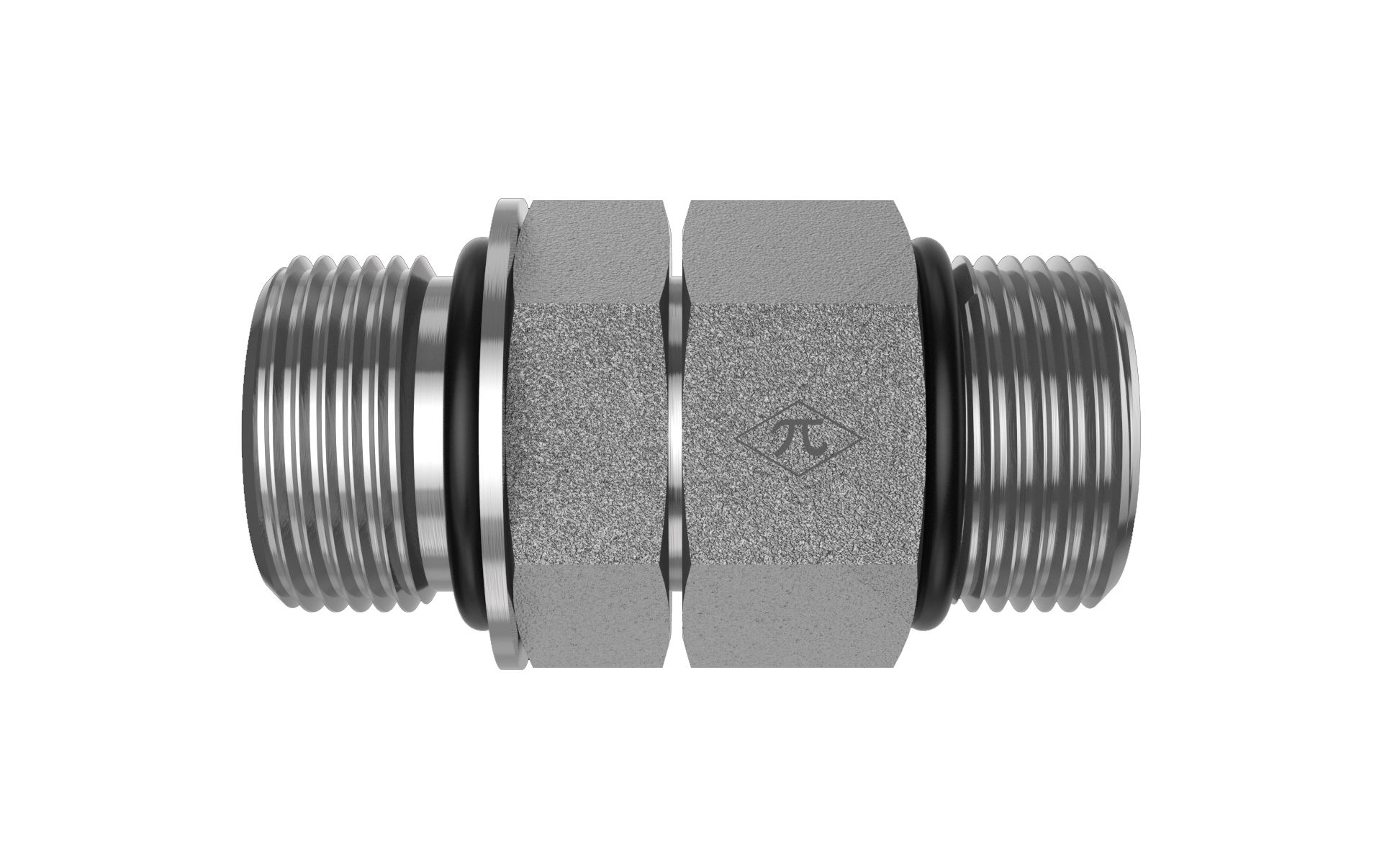

3474-10-08-NWO

7/8-14 Male Adjustable ORB x 3/4-16 Male ORB

3474-10-08-NWO is a 7/8-14 Male Adjustable ORB x 3/4-16 Male ORB in the 3474-NWO Series. For connecting two SAE ports using an adjustable nut for alignment.

  • Steel
  • Trivalent Zinc
  • Nipple
$14.78
(0) Write a Review

Product Details

Connection A
TypeMale Adjustable ORB
Port Size7/8-14
StandardSAE J1926
Thread Type7/8-14 UNF
Connection B
TypeMale ORB
Port Size3/4-16
StandardSAE J1926
Thread Type7/8-14 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeNipple
Weight0.27 lb
Cross References
Aeroquip2220-8-10S
Parker8-10 F5OHAO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
