HGW HYDRAULICS

3474-10-10-NWO-SS

7/8-14 Male Adjustable ORB x 7/8-14 Male ORB

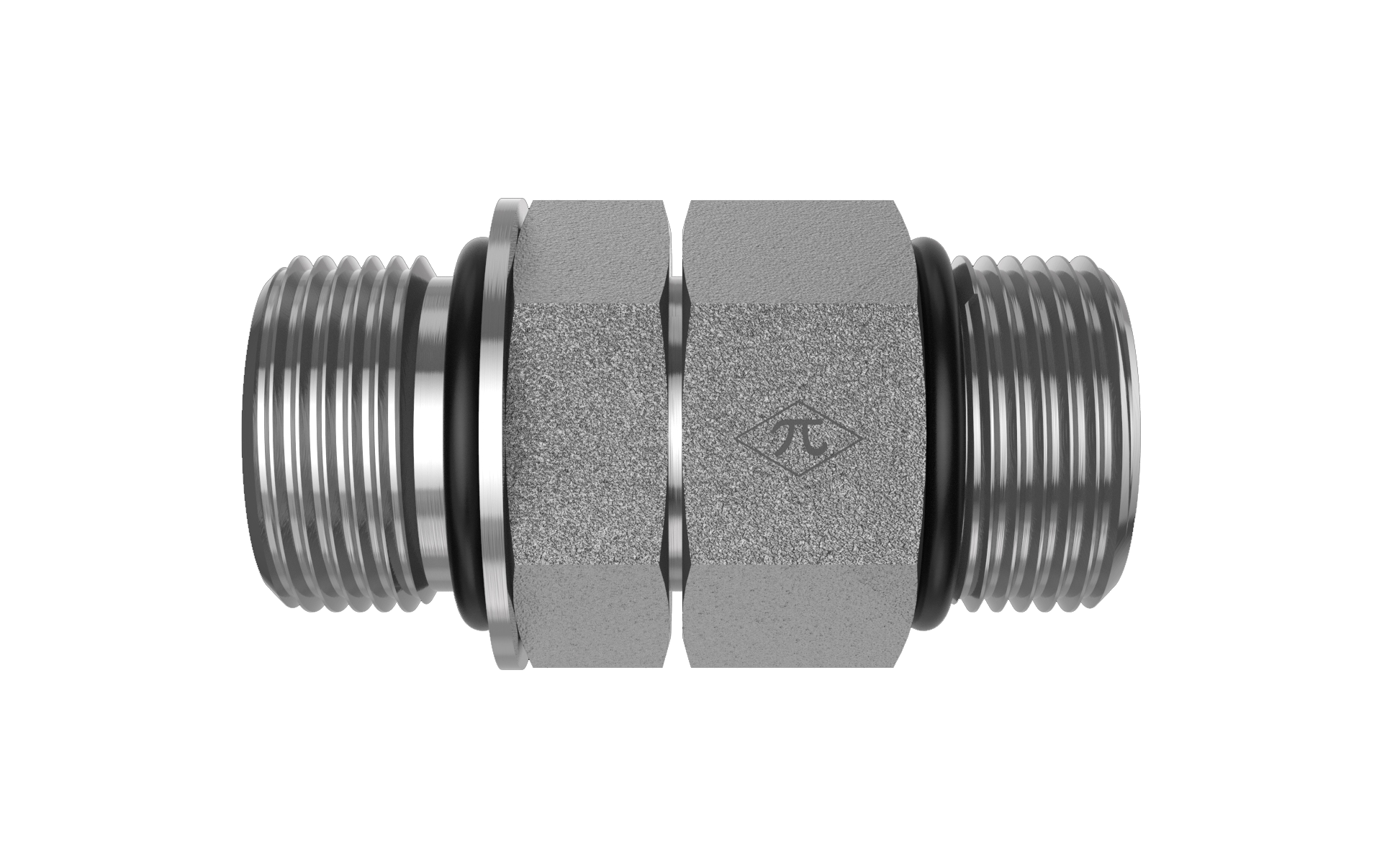

3474-10-10-NWO-SS is a 7/8-14 Male Adjustable ORB x 7/8-14 Male ORB in the 3474-NWO Series. For connecting two SAE ports using an adjustable nut for alignment.

  • Stainless Steel
  • Nipple
  • None
$178.08
(0) Write a Review

Product Details

Connection A
TypeMale Adjustable ORB
Port Size7/8-14
StandardSAE J1926
Thread Type7/8-14 UNF
Connection B
TypeMale ORB
Port Size7/8-14
StandardSAE J1926
Thread Type7/8-14 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeNipple
Weight0.28 lb
PlatingNone
Cross References
Aeroquip259-2220-10-10
Parker10 F5OHAO-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
