HGW HYDRAULICS

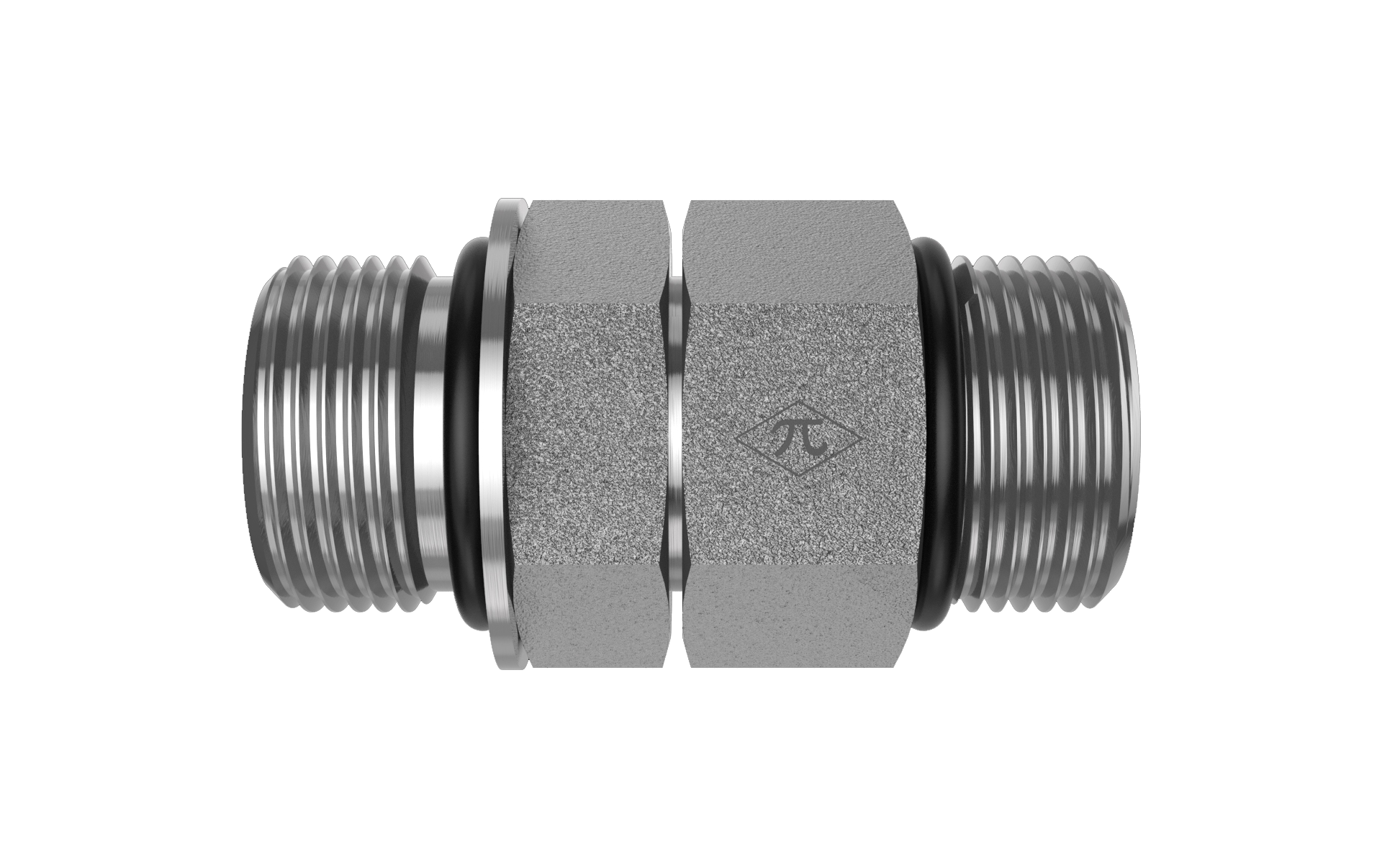

3474-12-10-NWO

1-1/16-12 Male Adjustable ORB x 7/8-14 Male ORB

3474-12-10-NWO is a 1-1/16-12 Male Adjustable ORB x 7/8-14 Male ORB in the 3474-NWO Series. For connecting two SAE ports using an adjustable nut for alignment.

  • Steel
  • Trivalent Zinc
  • Nipple
$50.44
(0) Write a Review

Product Details

Connection A
TypeMale Adjustable ORB
Port Size1-1/16-12
StandardSAE J1926
Thread Type1-1/16-12 UN
Connection B
TypeMale ORB
Port Size7/8-14
StandardSAE J1926
Thread Type1-1/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeNipple
Weight0.41 lb
Cross References
Aeroquip2220-10-12S
Parker10-12 F5OHAO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
