HGW HYDRAULICS

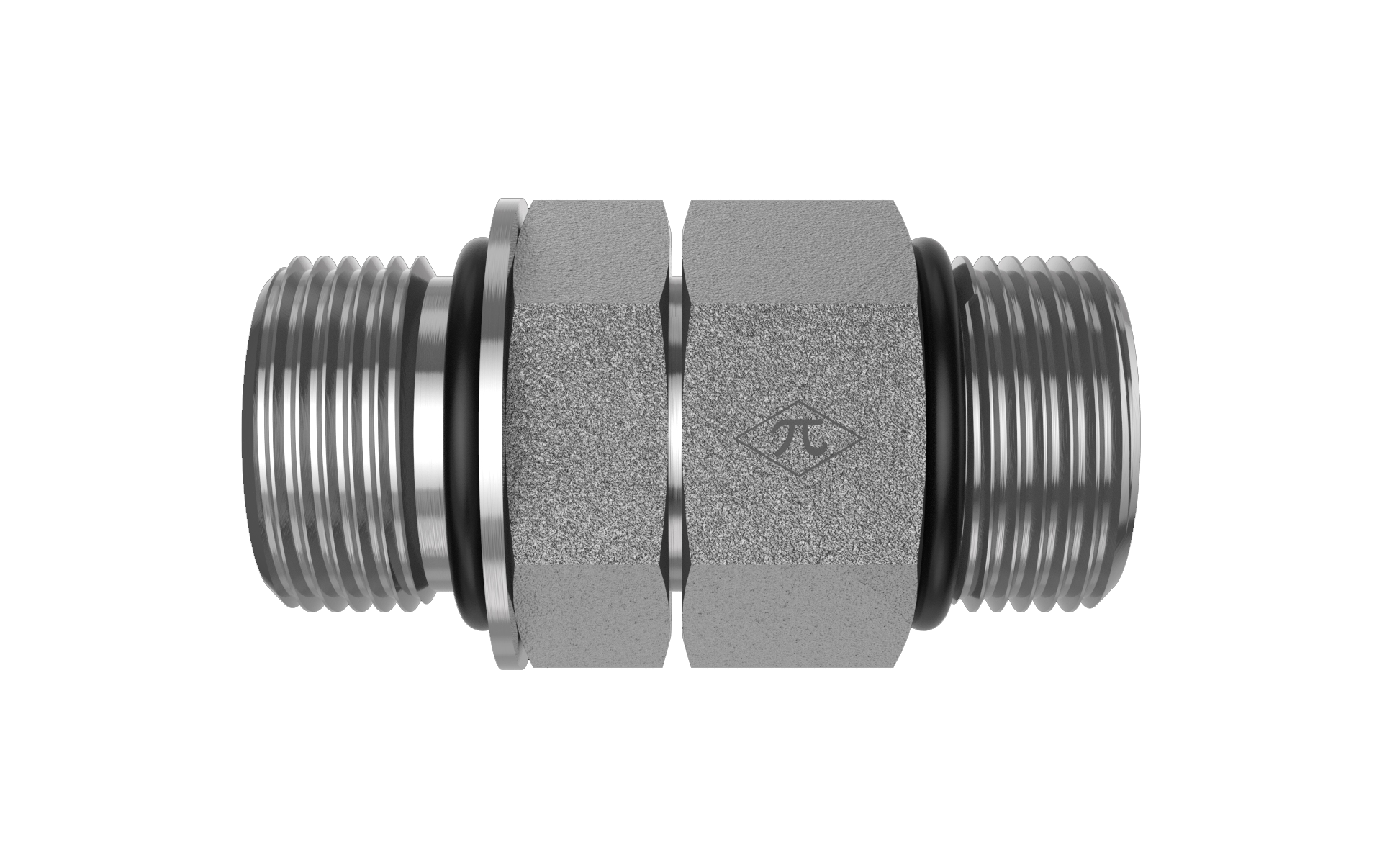

3474-12-12-NWO-SS-VITON

1-1/16-12 Male Adjustable ORB x 1-1/16-12 Male ORB

3474-12-12-NWO-SS-VITON is a 1-1/16-12 Male Adjustable ORB x 1-1/16-12 Male ORB in the 3474-NWO Series. For connecting two SAE ports using an adjustable nut for alignment.

  • Stainless Steel
  • Nipple
  • None
$391.80
(0) Write a Review

Product Details

Connection A
TypeMale Adjustable ORB
Port Size1-1/16-12
StandardSAE J1926
Thread Type1-1/16-12 UN
Connection B
TypeMale ORB
Port Size1-1/16-12
StandardSAE J1926
Thread Type1-1/16-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeNipple
Weight0.49 lb
PlatingNone
Cross References
Aeroquip213-259-2220-12-12
Parker12 F5OHAO-SS FKM

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
