HGW HYDRAULICS

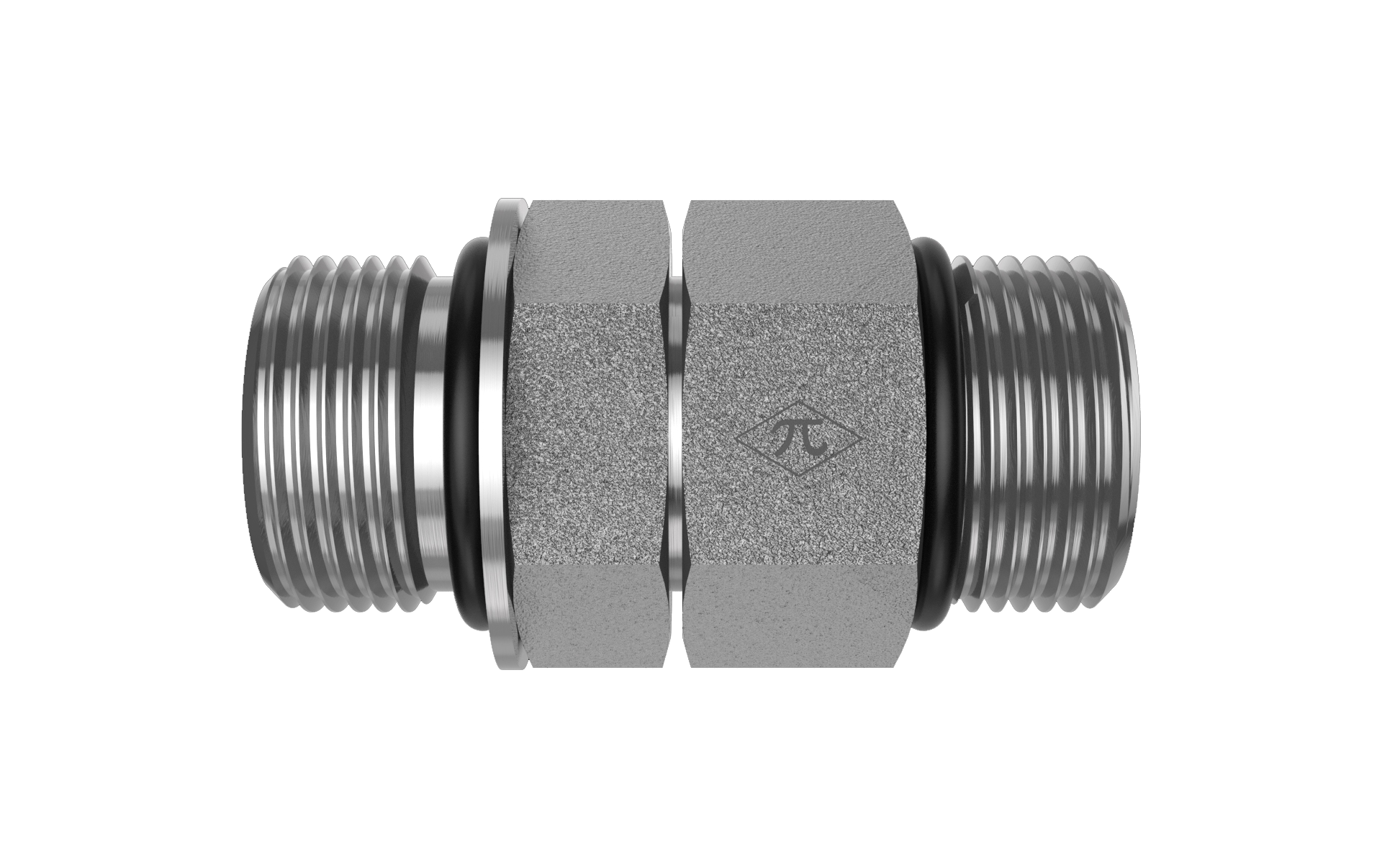

3474-16-16-NWO-SS

1-5/16-12 Male Adjustable ORB x 1-5/16-12 Male ORB

3474-16-16-NWO-SS is a 1-5/16-12 Male Adjustable ORB x 1-5/16-12 Male ORB in the 3474-NWO Series. For connecting two SAE ports using an adjustable nut for alignment.

  • Stainless Steel
  • Nipple
  • None
$153.19
(0) Write a Review

Product Details

Connection A
TypeMale Adjustable ORB
Port Size1-5/16-12
StandardSAE J1926
Thread Type1-5/16-12 UN
Connection B
TypeMale ORB
Port Size1-5/16-12
StandardSAE J1926
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeNipple
Weight0.67 lb
PlatingNone
Cross References
Aeroquip259-2220-16-16
Parker16 F5OHAO-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
