HGW HYDRAULICS

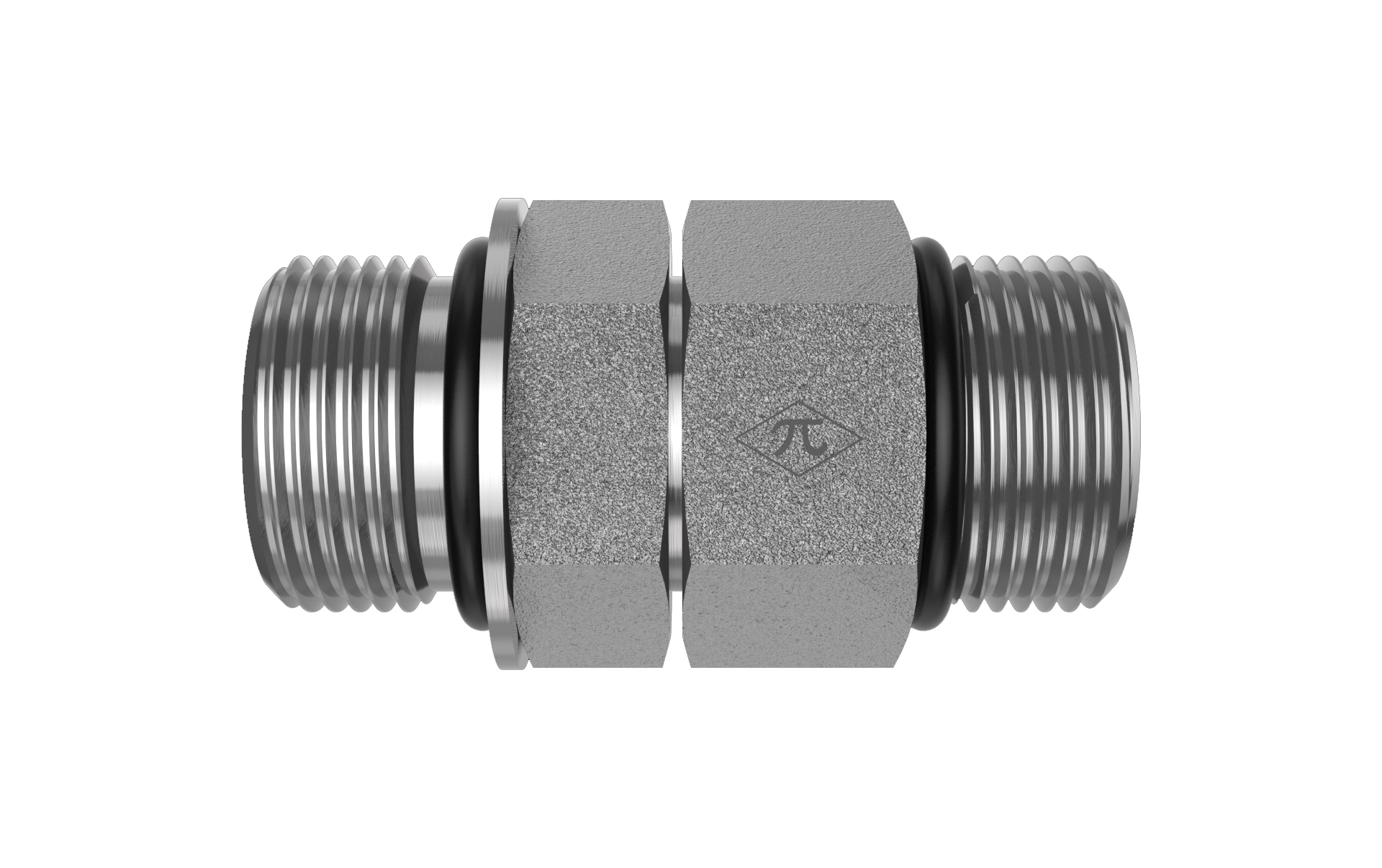

3474-16-16-NWO

1-5/16-12 Male Adjustable ORB x 1-5/16-12 Male ORB

3474-16-16-NWO is a 1-5/16-12 Male Adjustable ORB x 1-5/16-12 Male ORB in the 3474-NWO Series. For connecting two SAE ports using an adjustable nut for alignment.

  • Steel
  • Trivalent Zinc
  • Nipple
$29.00
(0) Write a Review

Product Details

Connection A
TypeMale Adjustable ORB
Port Size1-5/16-12
StandardSAE J1926
Thread Type1-5/16-12 UN
Connection B
TypeMale ORB
Port Size1-5/16-12
StandardSAE J1926
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeNipple
Weight0.64 lb
Cross References
Aeroquip2220-16-16S
Parker16 F5OHAO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
