HGW HYDRAULICS

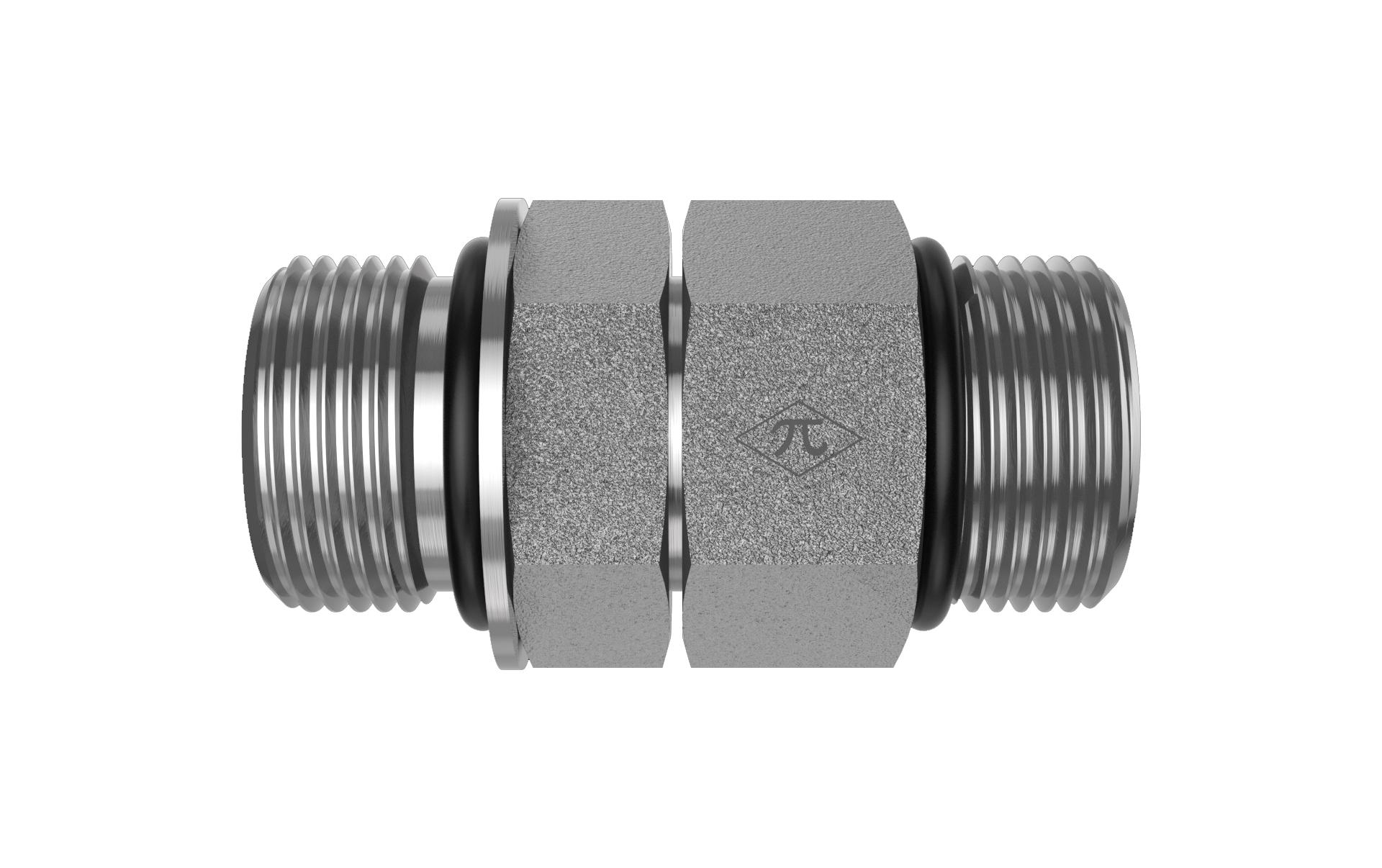

3474-20-20-NWO-SS

1-5/8-12 Male Adjustable ORB x 1-5/8-12 Male ORB

3474-20-20-NWO-SS is a 1-5/8-12 Male Adjustable ORB x 1-5/8-12 Male ORB in the 3474-NWO Series. For connecting two SAE ports using an adjustable nut for alignment.

  • Stainless Steel
  • Nipple
  • None
$279.56
(0) Write a Review

Product Details

Connection A
TypeMale Adjustable ORB
Port Size1-5/8-12
StandardSAE J1926
Thread Type1-5/8-12 UN
Connection B
TypeMale ORB
Port Size1-5/8-12
StandardSAE J1926
Thread Type1-5/8-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeNipple
Weight1.00 lb
PlatingNone
Cross References
Aeroquip259-2220-20-20
Parker20 F5OHAO-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
