HGW HYDRAULICS

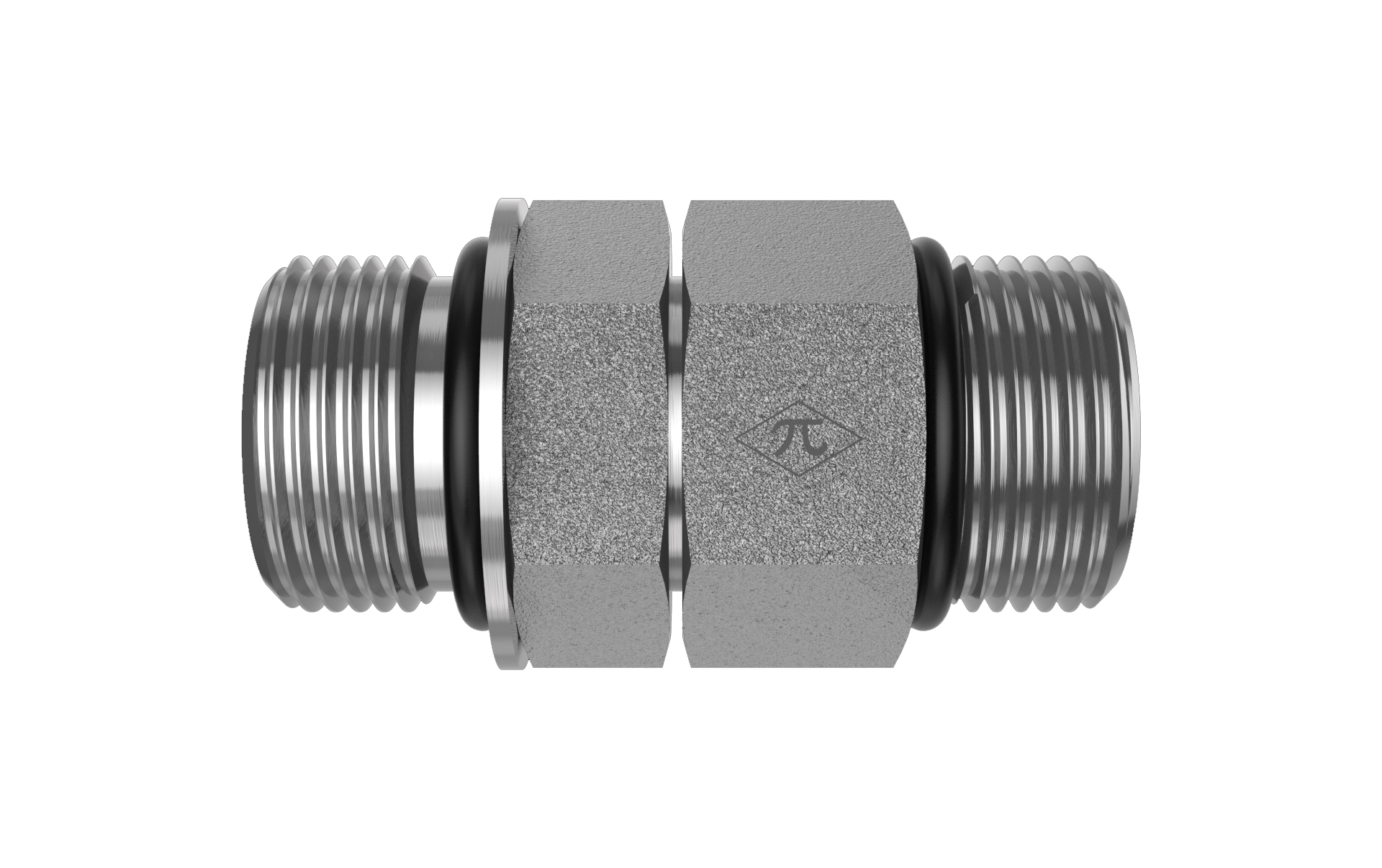

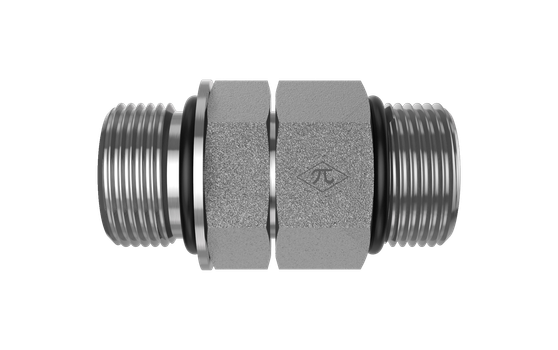

3474-24-24-NWO

1-7/8-12 Male Adjustable ORB x 1-7/8-12 Male ORB

3474-24-24-NWO is a 1-7/8-12 Male Adjustable ORB x 1-7/8-12 Male ORB in the 3474-NWO Series. For connecting two SAE ports using an adjustable nut for alignment.

  • Steel
  • Trivalent Zinc
  • Nipple
$63.13
(0) Write a Review

Product Details

Connection A
TypeMale Adjustable ORB
Port Size1-7/8-12
StandardSAE J1926
Thread Type1-7/8-12 UN
Connection B
TypeMale ORB
Port Size1-7/8-12
StandardSAE J1926
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeNipple
Weight1.24 lb
Cross References
Aeroquip2220-24-24S
Parker24 F5OHAO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
