3474-LLL-04-04-NWO

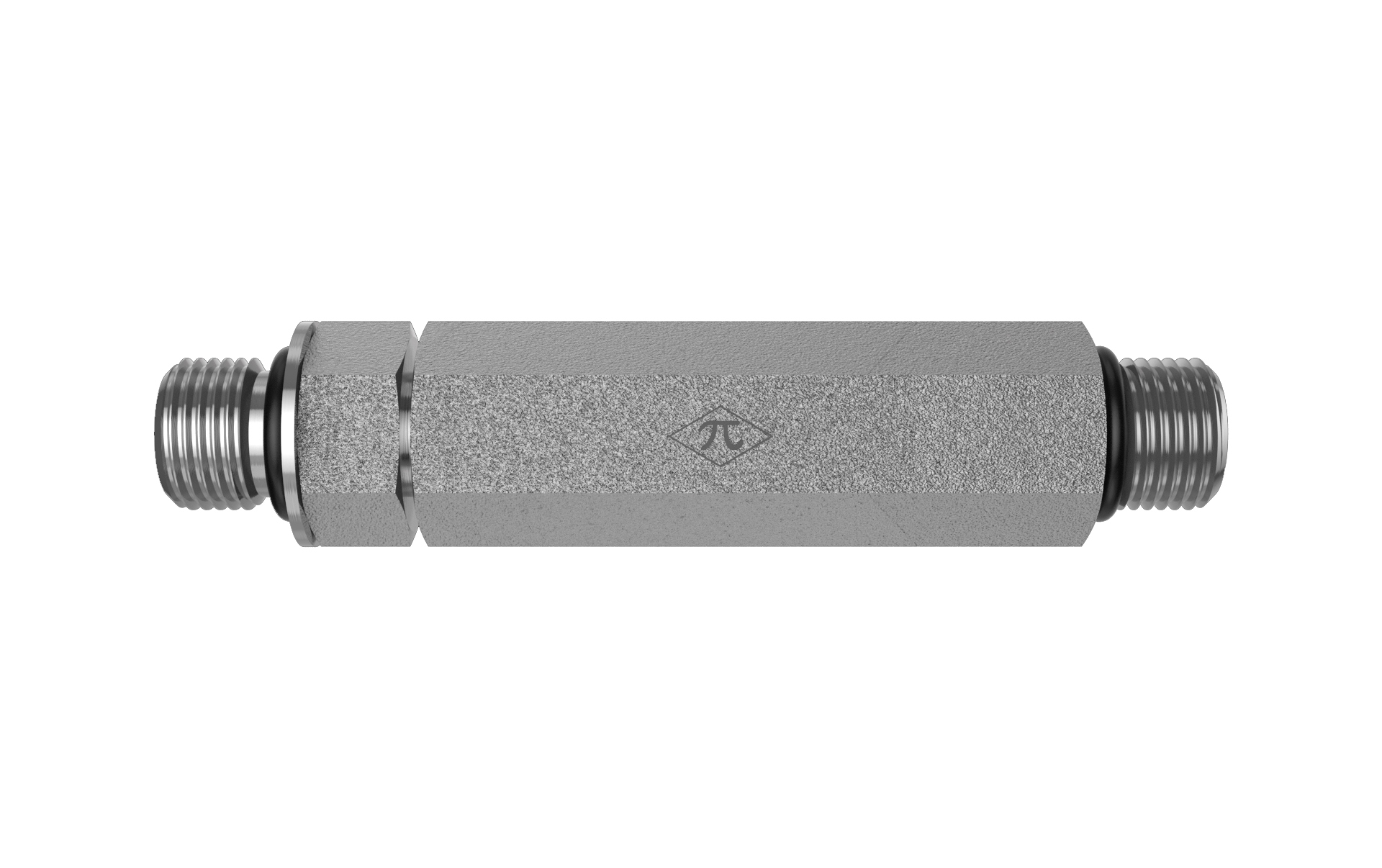

7/16-20 Male Adjustable ORB x 7/16-20 Male ORB

3474-LLL-04-04-NWO is a 7/16-20 Male Adjustable ORB x 7/16-20 Male ORB in the 3474-LLL-NWO Series. For long-distance connections between two SAE O-Ring Boss ports using an adjustable nut for alignment.

  • Steel
  • Trivalent Zinc
  • Nipple
$27.32
(0) Write a Review

Product Details

Connection A
TypeMale Adjustable ORB
Port Size7/16-20
StandardSAE J1926
Thread Type7/16-20 UNF
Connection B
TypeMale ORB
Port Size7/16-20
StandardSAE J1926
Thread Type7/16-20 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeNipple
Weight0.18 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
