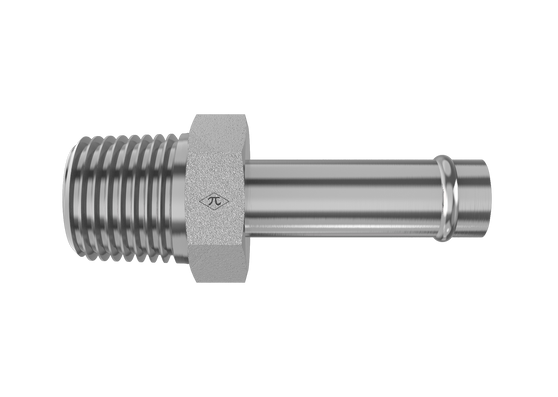

4404 product image

HGW HYDRAULICS

4404-24-16

1-1/2" Beaded Hose Barb x 1" Male NPTF 30°

4404-24-16 is a 1-1/2" Beaded Hose Barb x 1" Male NPTF 30° in the 4404 Series. For connecting hose with bead end to male NPTF pipe.

  • Steel
  • Trivalent Zinc
  • Male Connector
$95.92
(0) Write a Review

Product Details

Connection A
TypeBeaded Hose Barb
Hose ID1-1/2"
StandardSAE J1231-2
Connection B
TypeMale NPTF 30°
Pipe Size1"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.46 lb
ShapeMale Connector
Cross References
AeroquipFF1829-1624S
Parker01TB-16-24

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
