HGW HYDRAULICS

4501-04-04-FG

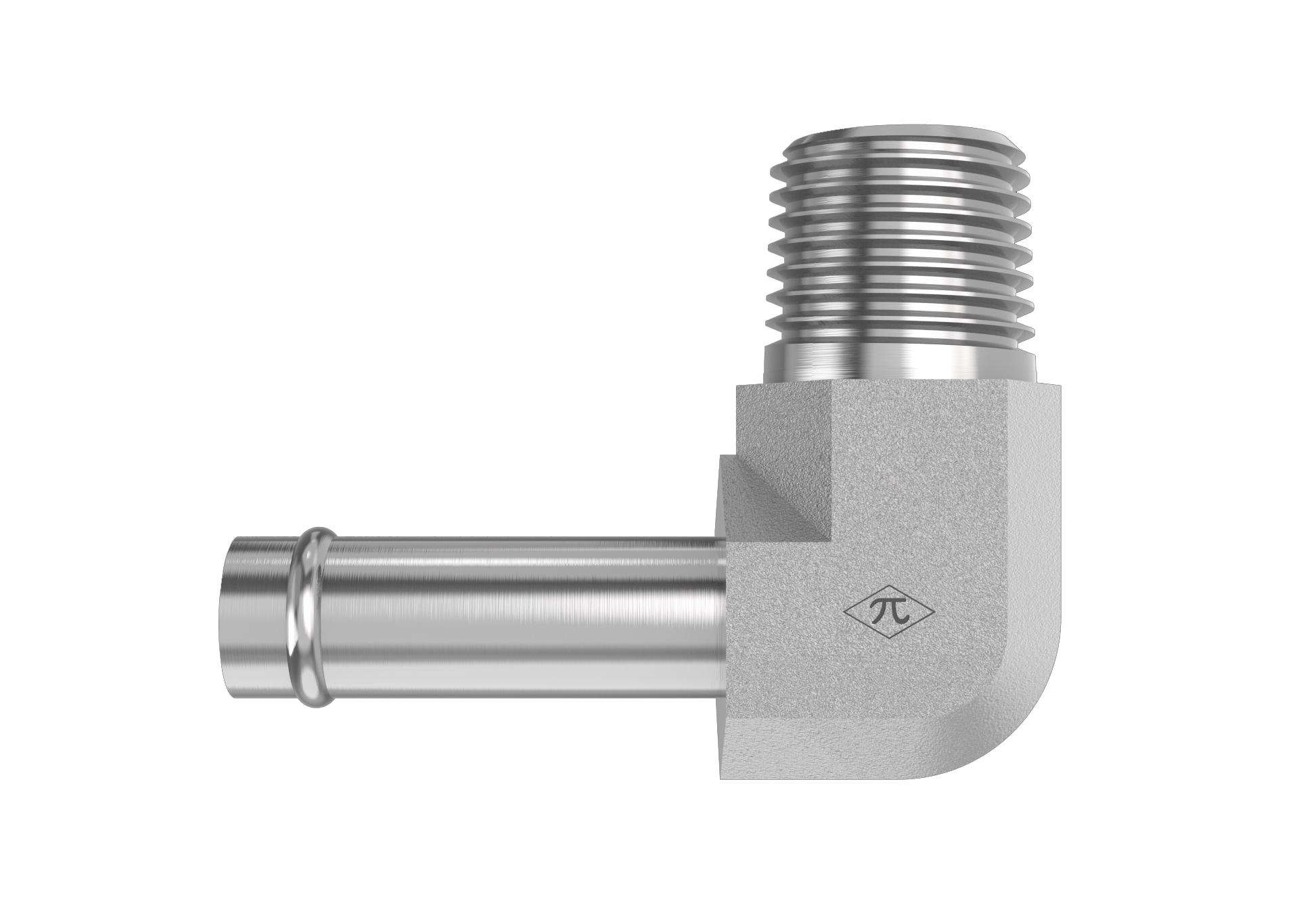

1/4" Beaded Hose Barb × 1/4" Male NPTF · Male Elbow

The HGW 4501-04-04-FG is a male elbow joining 1/4" beaded hose barb to 1/4" male NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1231-2 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Elbow
$3.43
(0) Write a Review
SKU:
4501-04-04-FG

Product Details

Connection A
TypeBeaded Hose Barb
Hose ID1/4"
StandardSAE J1231-2
Size1/4"
Connection B
TypeMale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.10 lb
ShapeMale Elbow
Cross References
AeroquipFF1162-0404S
Parker21TB-4-4

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
