HGW HYDRAULICS

4501-06-02-FG

3/8" Beaded Hose Barb × 1/8" Male NPTF · Male Elbow

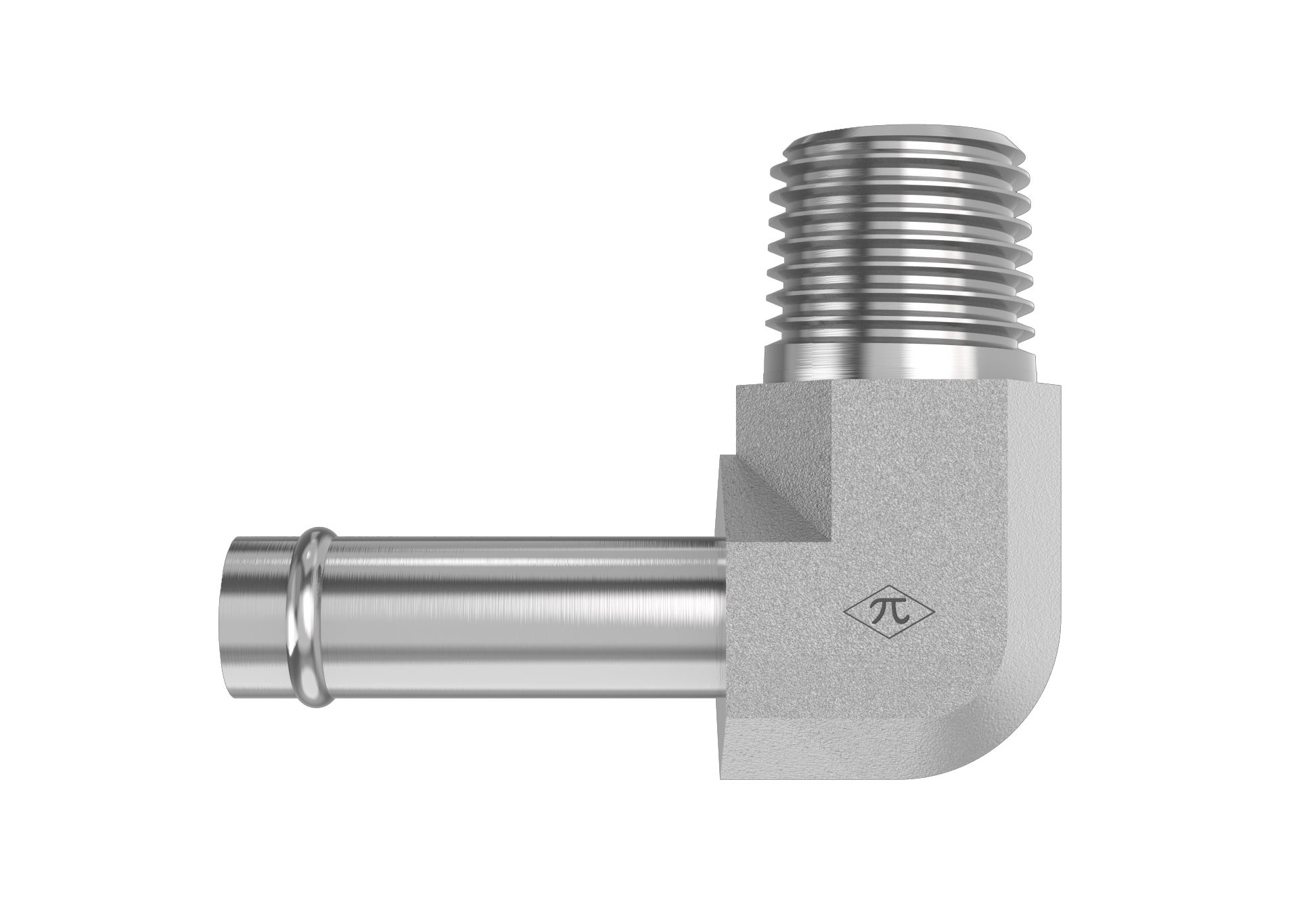

The HGW 4501-06-02-FG is a male elbow joining 3/8" beaded hose barb to 1/8" male NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1231-2 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Elbow
$22.60
(0) Write a Review
SKU:
4501-06-02-FG

Product Details

Connection A
TypeBeaded Hose Barb
Hose ID3/8"
StandardSAE J1231-2
Size3/8"
Connection B
TypeMale NPTF
Pipe Size1/8"
StandardSAE J476
Thread Type1/8-27 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.08 lb
ShapeMale Elbow
Cross References
AeroquipFF1162-0206S
Parker21TB-2-6

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
