HGW HYDRAULICS

4501-10-06-FG

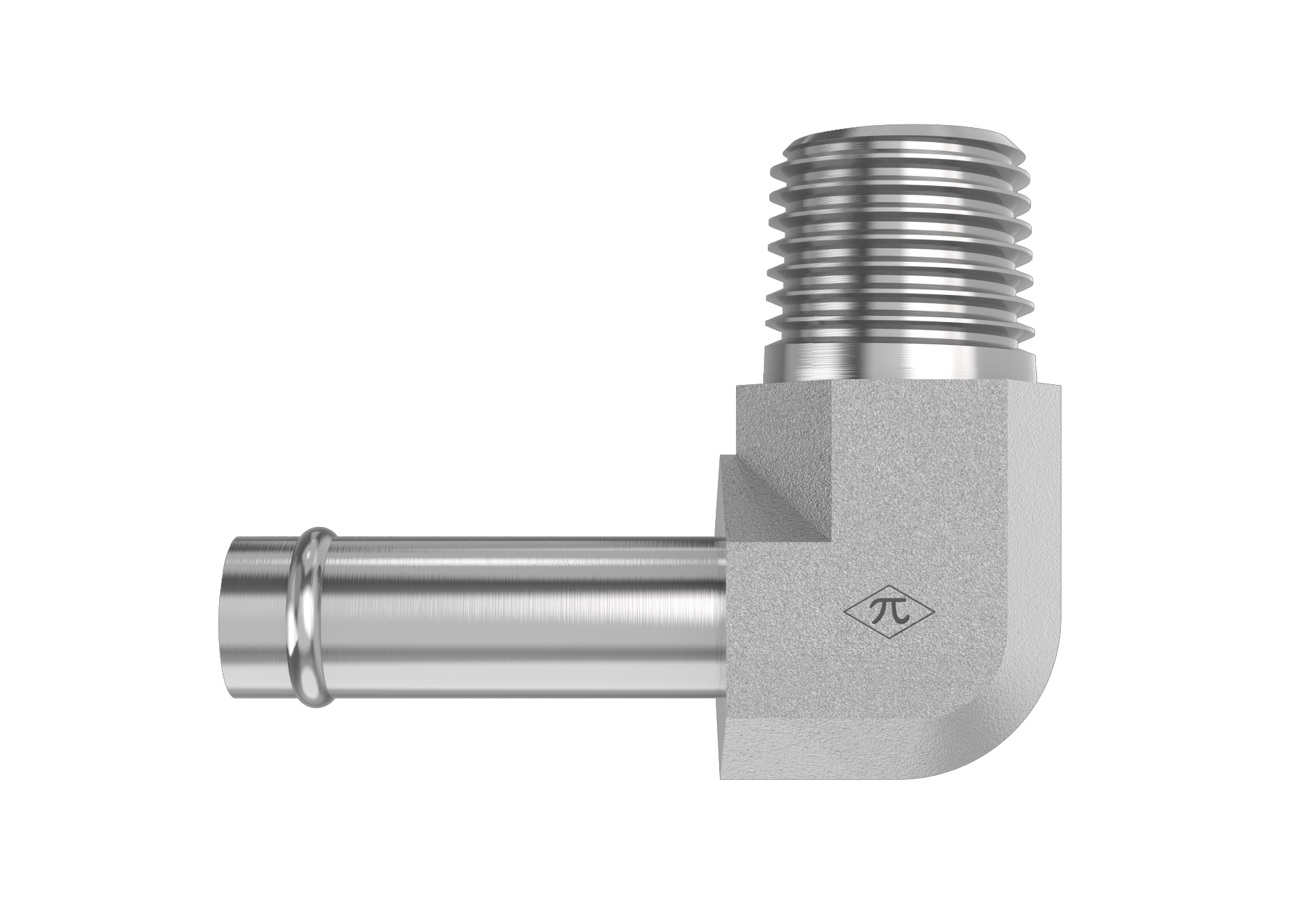

5/8" Beaded Hose Barb × 3/8" Male NPTF · Male Elbow

The HGW 4501-10-06-FG is a male elbow joining 5/8" beaded hose barb to 3/8" male NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1231-2 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Elbow
$7.73
(0) Write a Review
SKU:
4501-10-06-FG

Product Details

Connection A
TypeBeaded Hose Barb
Hose ID5/8"
StandardSAE J1231-2
Size5/8"
Connection B
TypeMale NPTF
Pipe Size3/8"
StandardSAE J476
Thread Type3/8-18 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.21 lb
ShapeMale Elbow
Cross References
AeroquipFF1162-0610S
Parker21TB-6-10

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
