HGW HYDRAULICS

4501-24-16-FG

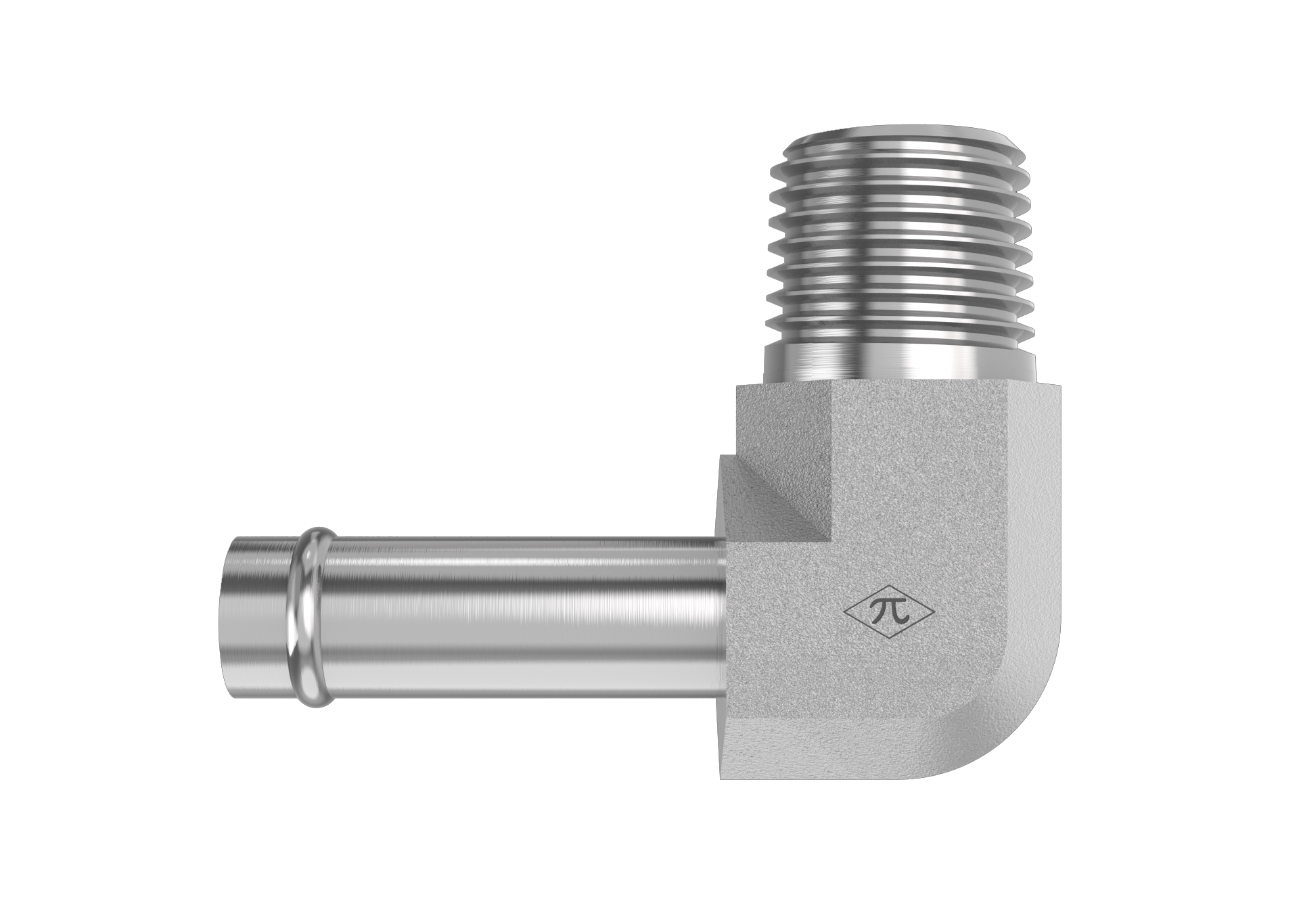

1-1/2" Beaded Hose Barb × 1" Male NPTF · Male Elbow

The HGW 4501-24-16-FG is a male elbow joining 1-1/2" beaded hose barb to 1" male NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1231-2 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Elbow
$65.00
(0) Write a Review
SKU:
4501-24-16-FG

Product Details

Connection A
TypeBeaded Hose Barb
Hose ID1-1/2"
StandardSAE J1231-2
Size1-1/2"
Connection B
TypeMale NPTF
Pipe Size1"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight1.60 lb
ShapeMale Elbow
Cross References
AeroquipFF1162-1624S
Parker21TB-16-24

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
