HGW HYDRAULICS

4503-10-08-FG

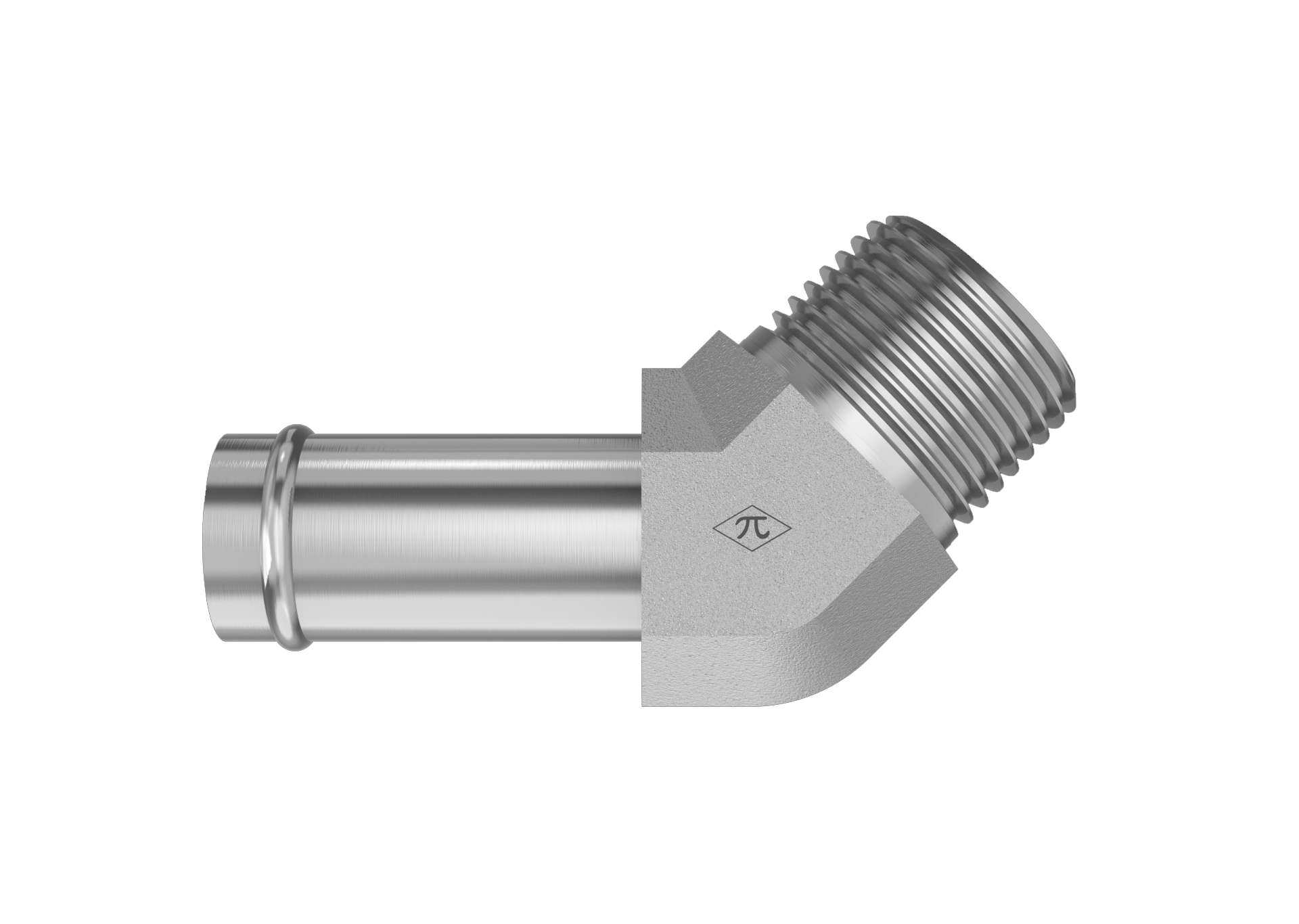

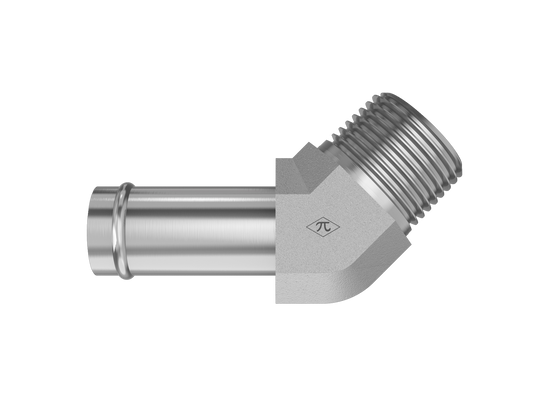

5/8" Beaded Hose Barb x 1/2" Male NPTF 30°

4503-10-08-FG is a 5/8" Beaded Hose Barb x 1/2" Male NPTF 30° in the 4503-FG Series. 45° elbow for connecting bead-end hose to male NPTF pipe.

  • Steel
  • Trivalent Zinc
  • Male Elbow
$5.74
(0) Write a Review

Product Details

Connection A
TypeBeaded Hose Barb
Hose ID5/8"
StandardSAE J1231-2
Connection B
TypeMale NPTF 30°
Pipe Size1/2"
StandardSAE J476
Thread Type1/2-14 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.09 lb
ShapeMale Elbow
Cross References
AeroquipFF1360-0810S
Parker31TB-8-10

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
