HGW HYDRAULICS

4503-12-12-FG

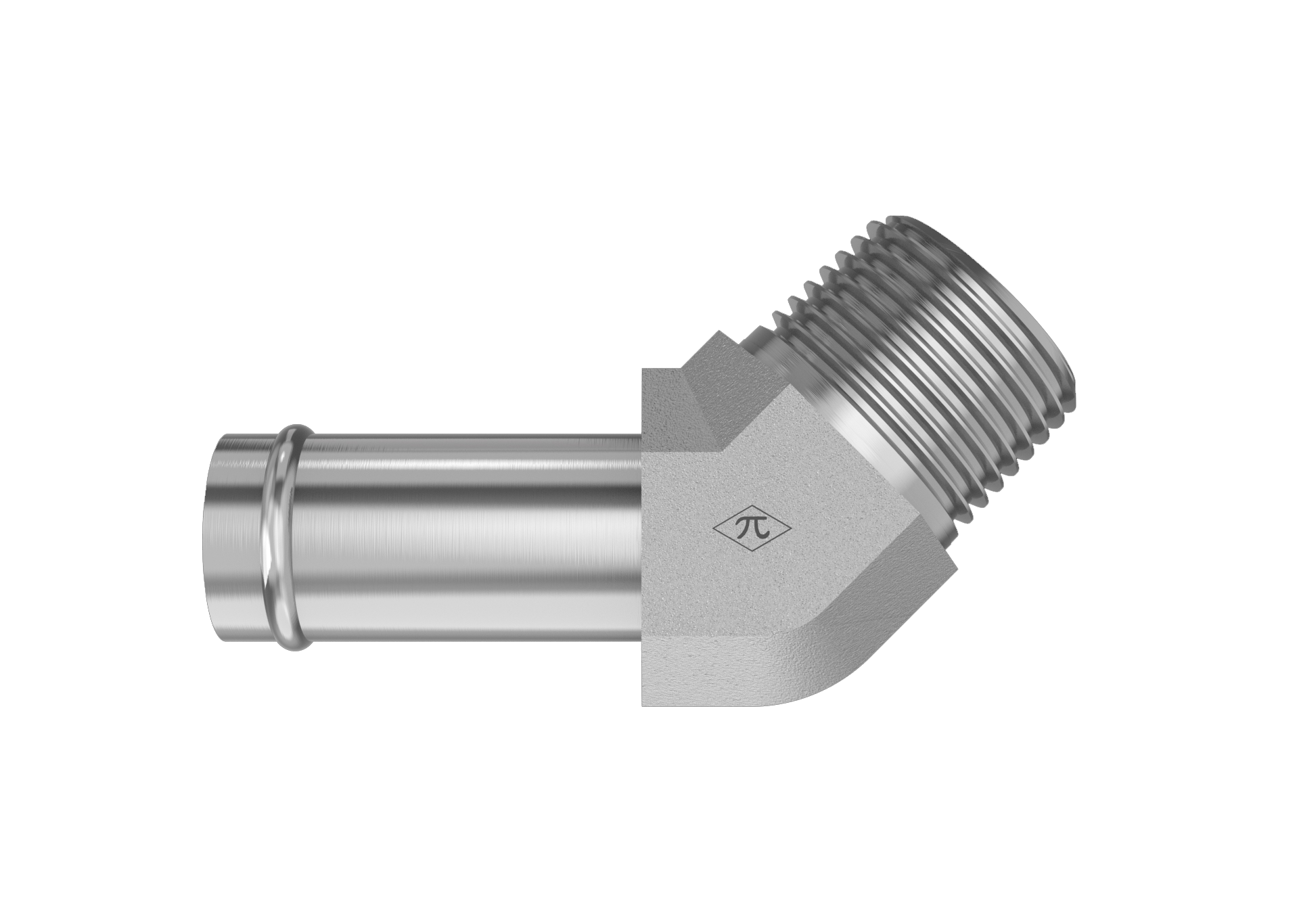

3/4" Beaded Hose Barb × 3/4" Male NPTF · Male Elbow

The HGW 4503-12-12-FG is a male elbow joining 3/4" beaded hose barb to 3/4" male NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1231-2 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Elbow
$8.79
(0) Write a Review
SKU:
4503-12-12-FG

Product Details

Connection A
TypeBeaded Hose Barb
Hose ID3/4"
StandardSAE J1231-2
Size3/4"
Connection B
TypeMale NPTF
Pipe Size3/4"
StandardSAE J476
Thread Type3/4-14 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.30 lb
ShapeMale Elbow
Cross References
AeroquipFF1360-1212S
Parker31TB-12-12

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
