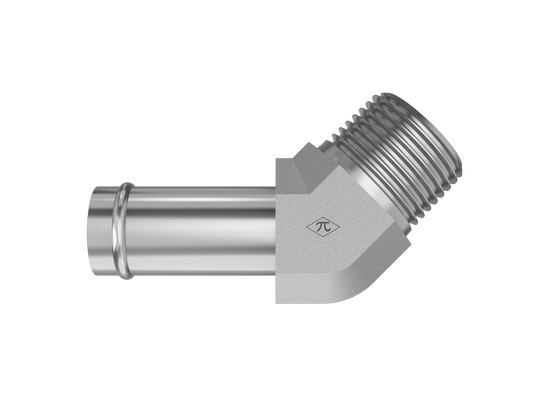

Google Merchant product image

HGW HYDRAULICS

4503-16-12-FG

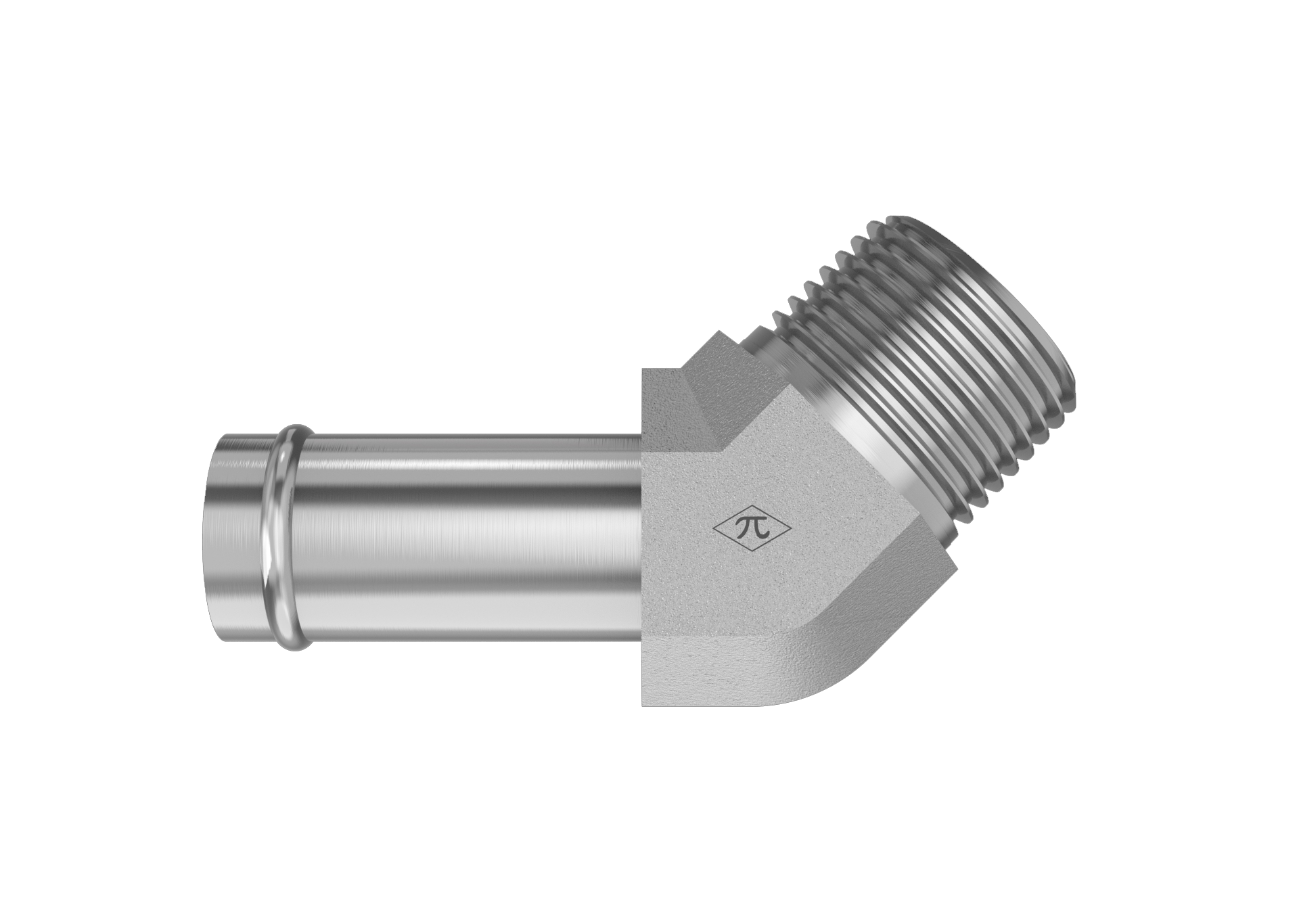

1" Beaded Hose Barb x 3/4" Male NPTF 30°

4503-16-12-FG is a 1" Beaded Hose Barb x 3/4" Male NPTF 30° in the 4503-FG Series. 45° elbow for connecting bead-end hose to male NPTF pipe.

  • Steel
  • Trivalent Zinc
  • Male Elbow
$34.02
(0) Write a Review

Product Details

Connection A
TypeBeaded Hose Barb
Hose ID1"
StandardSAE J1231-2
Connection B
TypeMale NPTF 30°
Pipe Size3/4"
StandardSAE J476
Thread Type3/4-14 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.41 lb
ShapeMale Elbow
Cross References
AeroquipFF1360-1216S
Parker31TB-12-16

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
