HGW HYDRAULICS

4503-16-16-B

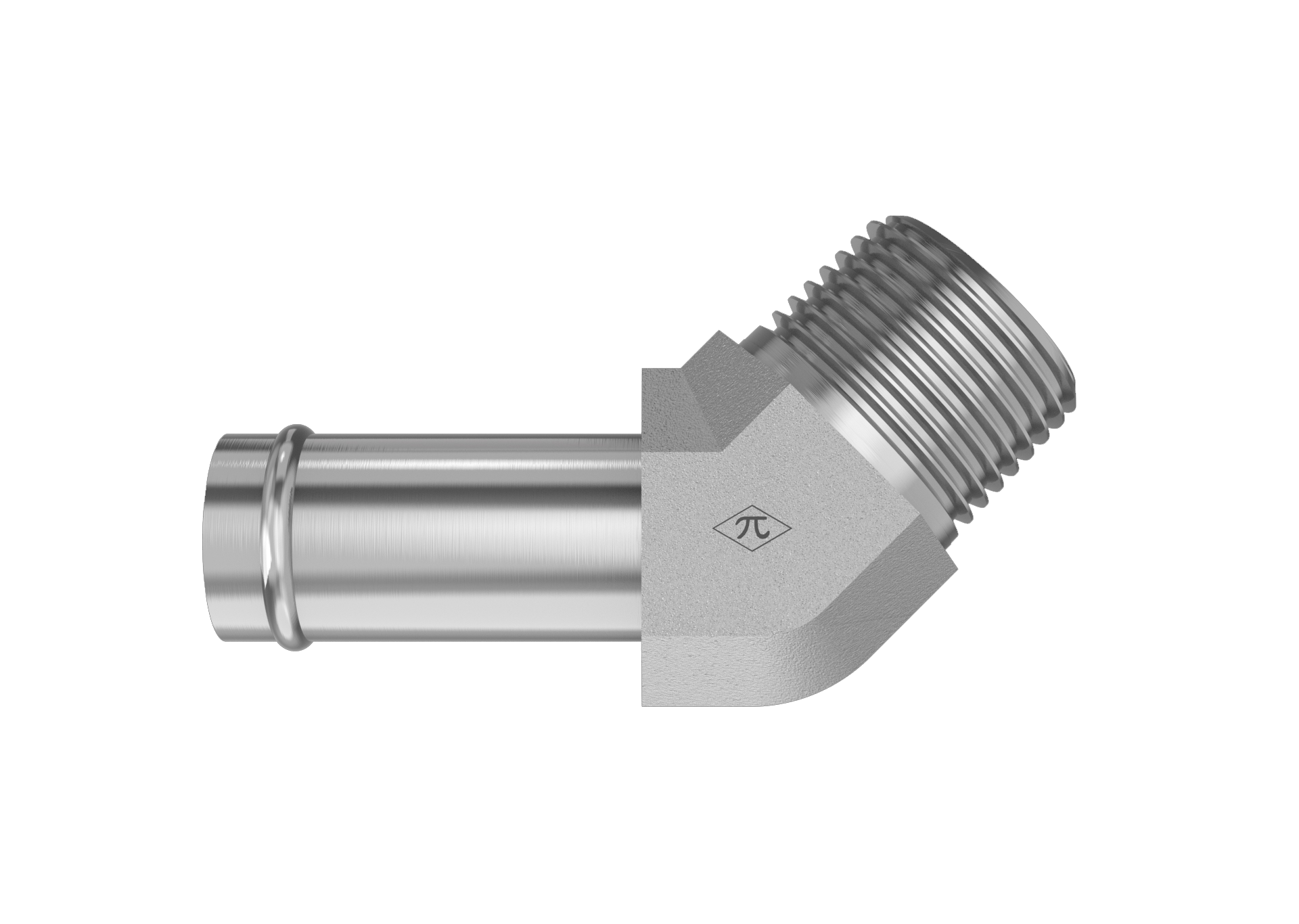

1" Beaded Hose Barb x 1" Male NPTF 30°

4503-16-16-B is a 1" Beaded Hose Barb x 1" Male NPTF 30° in the 4503-FG Series. 45° elbow for connecting bead-end hose to male NPTF pipe.

  • Brass
  • Natural Finish
  • Male Elbow
$107.55
(0) Write a Review

Product Details

Connection A
TypeBeaded Hose Barb
Hose ID1"
StandardSAE J1231-2
Connection B
TypeMale NPTF 30°
Pipe Size1"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialBrass
Weight0.49 lb
PlatingNatural Finish
ShapeMale Elbow
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
