HGW HYDRAULICS

4601-04-04-NWO-SS

1/4" Beaded Hose Barb x 7/16-20 Male Adjustable ORB

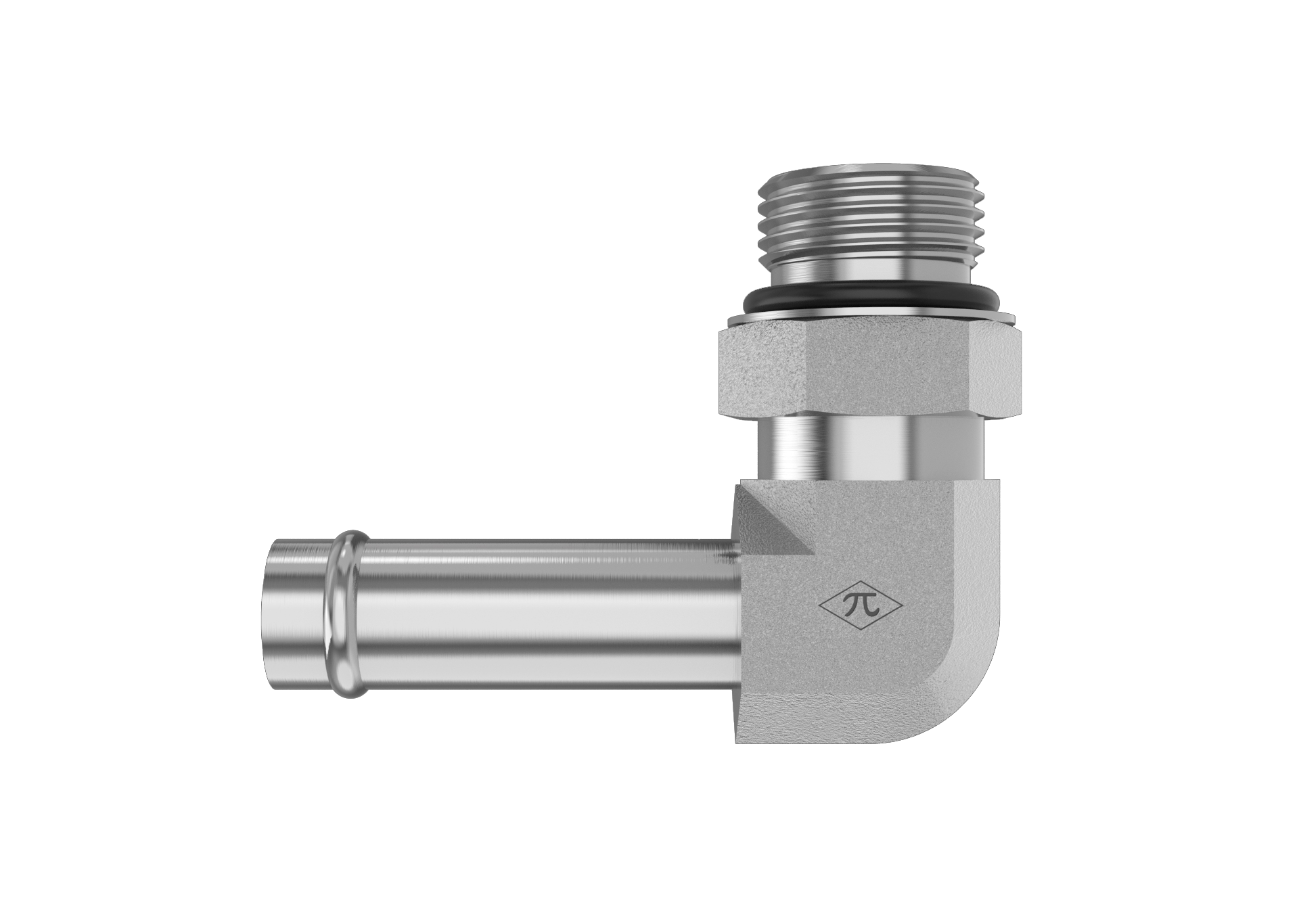

4601-04-04-NWO-SS is a 1/4" Beaded Hose Barb x 7/16-20 Male Adjustable ORB in the 4601-NWO-FG Series. 90° elbow for connecting bead-end hose to a male adjustable O-ring boss port.

  • Stainless Steel
  • Male Adjustable Elbow
  • None
$134.02
(0) Write a Review

Product Details

Connection A
TypeBeaded Hose Barb
Hose ID1/4"
StandardSAE J1231-2
Connection B
TypeMale Adjustable ORB
Port Size7/16-20
StandardSAE J1926
Thread Type7/16-20 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.07 lb
ShapeMale Adjustable Elbow
PlatingNone
Cross References
Aeroquip259-FF1167-0404
Parker25TB-4-4-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
