HGW HYDRAULICS

4601-06-04-NWO-SS

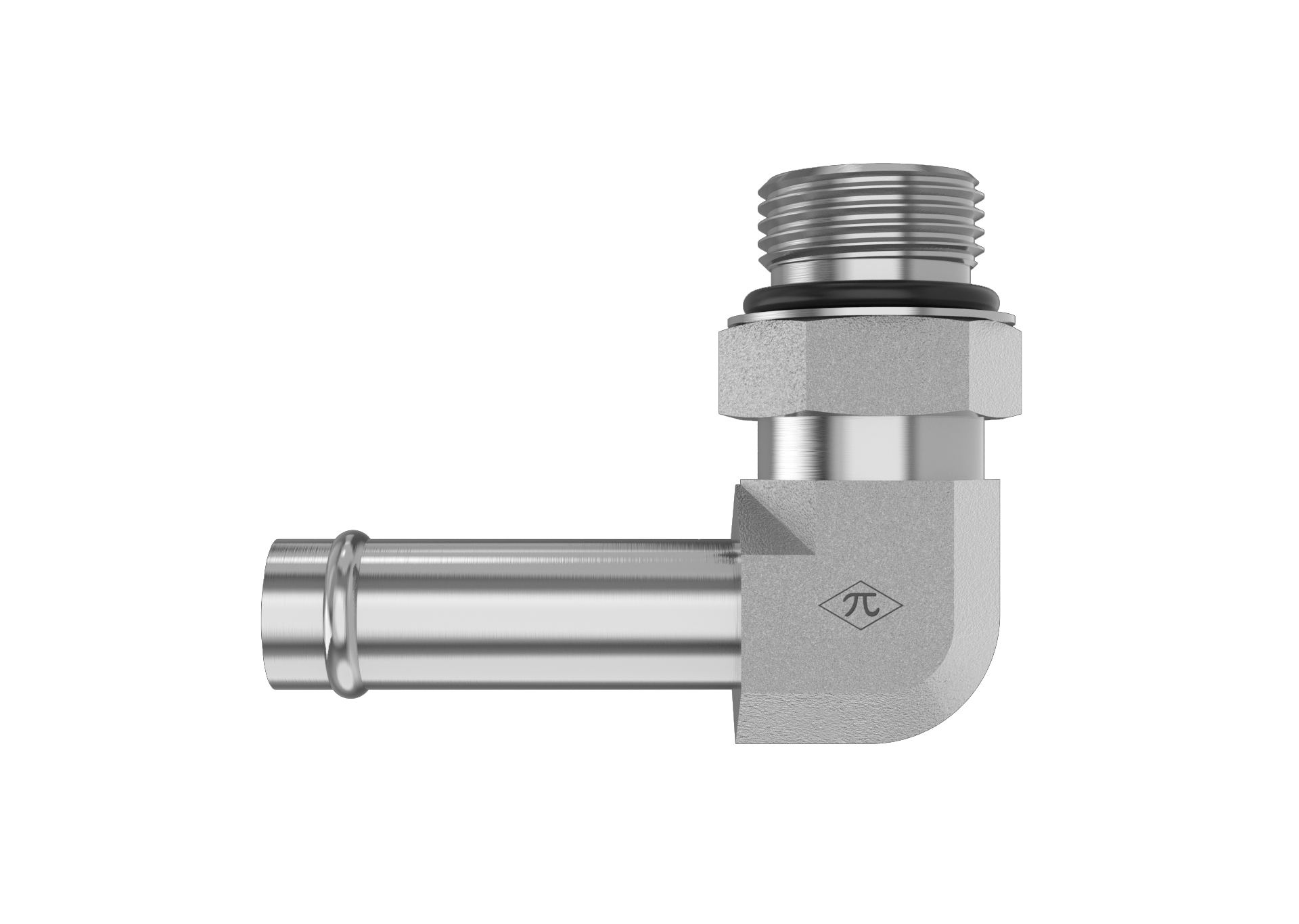

3/8" Beaded Hose Barb × 7/16-20 Male Adjustable ORB · Male Adjustable Elbow

The HGW 4601-06-04-NWO-SS is a male adjustable elbow joining 3/8" beaded hose barb to 7/16-20 male adjustable ORB. Made from stainless steel, it uses SAE J1231-2 and SAE J1926 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Male Adjustable Elbow
$54.92
(0) Write a Review
SKU:
4601-06-04-NWO-SS

Product Details

Connection A
TypeBeaded Hose Barb
Hose ID3/8"
StandardSAE J1231-2
Size3/8"
Connection B
TypeMale Adjustable ORB
Port Size7/16-20
StandardSAE J1926
Thread Type7/16-20 UNF
Size7/16-20
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.10 lb
ShapeMale Adjustable Elbow
Cross References
Aeroquip259-FF1167-0406
Parker25TB-4-6-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
