HGW HYDRAULICS

4601-06-06-NWO-B

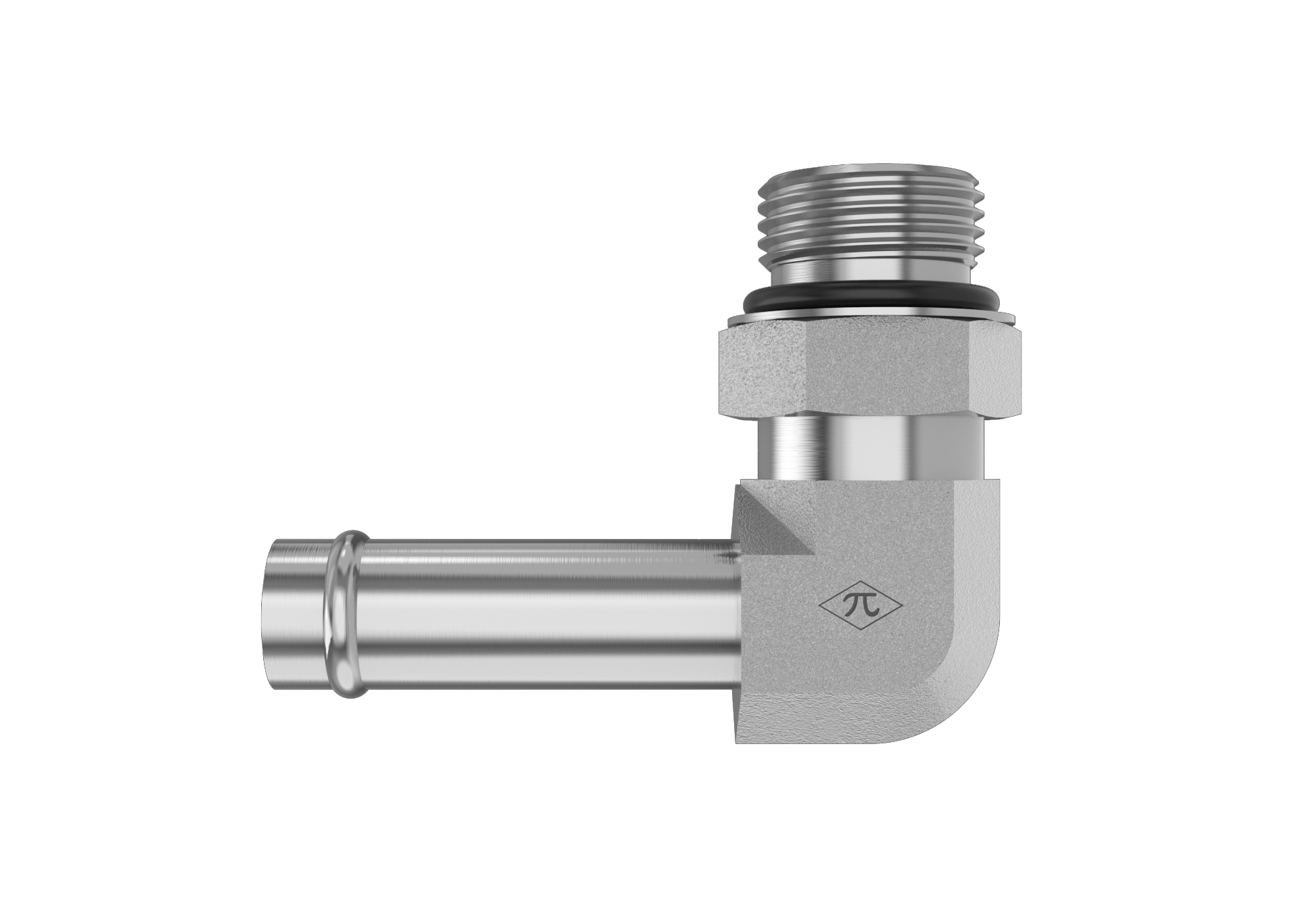

3/8" Beaded Hose Barb × 9/16-18 Male Adjustable ORB · Male Adjustable Elbow

The HGW 4601-06-06-NWO-B is a male adjustable elbow joining 3/8" beaded hose barb to 9/16-18 male adjustable ORB. Made from brass, it uses SAE J1231-2 and SAE J1926 interfaces for compatible hydraulic applications.

  • Brass
  • Male Adjustable Elbow
$48.48
(0) Write a Review
SKU:
4601-06-06-NWO-B

Product Details

Connection A
TypeBeaded Hose Barb
Hose ID3/8"
StandardSAE J1231-2
Size3/8"
Connection B
TypeMale Adjustable ORB
Port Size9/16-18
StandardSAE J1926
Thread Type9/16-18 UNF
Size9/16-18
Connection C
Connection D
Specifications
MaterialBrass
Weight0.12 lb
ShapeMale Adjustable Elbow
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
