4601-10-12-NWO-FG

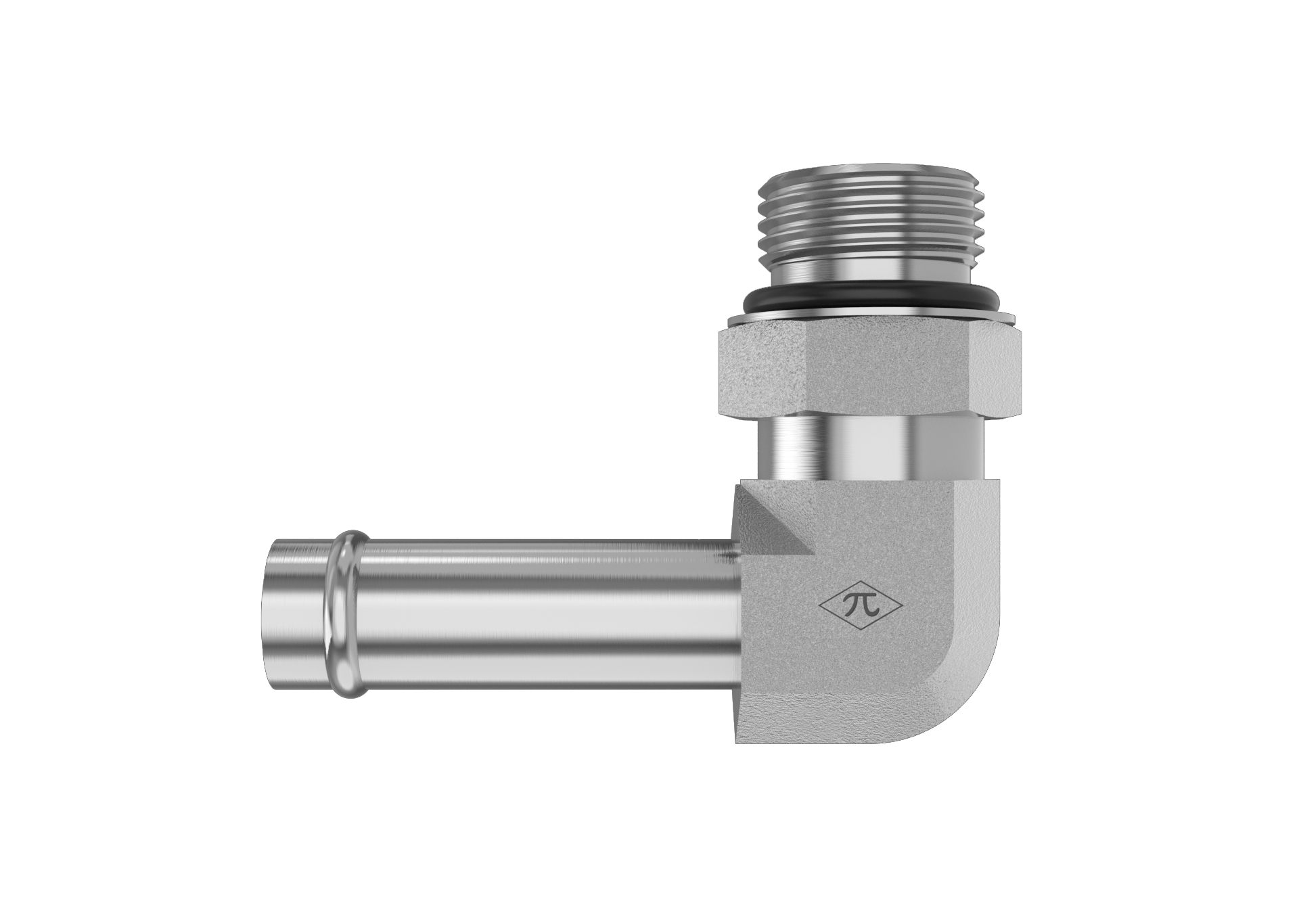

5/8" Beaded Hose Barb × 1-1/16-12 Male Adjustable ORB · Male Adjustable Elbow

The HGW 4601-10-12-NWO-FG is a male adjustable elbow joining 5/8" beaded hose barb to 1-1/16-12 male adjustable ORB. Made from trivalent-zinc-plated steel, it uses SAE J1231-2 and SAE J1926 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Adjustable Elbow
$26.85
(0) Write a Review
SKU:
4601-10-12-NWO-FG

Product Details

Connection A
TypeBeaded Hose Barb
Hose ID5/8"
StandardSAE J1231-2
Size5/8"
Connection B
TypeMale Adjustable ORB
Port Size1-1/16-12
StandardSAE J1926
Thread Type1-1/16-12 UN
Size1-1/16-12
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.54 lb
ShapeMale Adjustable Elbow
Cross References
AeroquipFF1167-1210S
Parker25TB-12-10

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
