HGW HYDRAULICS

4601-20-24-NWO-FG

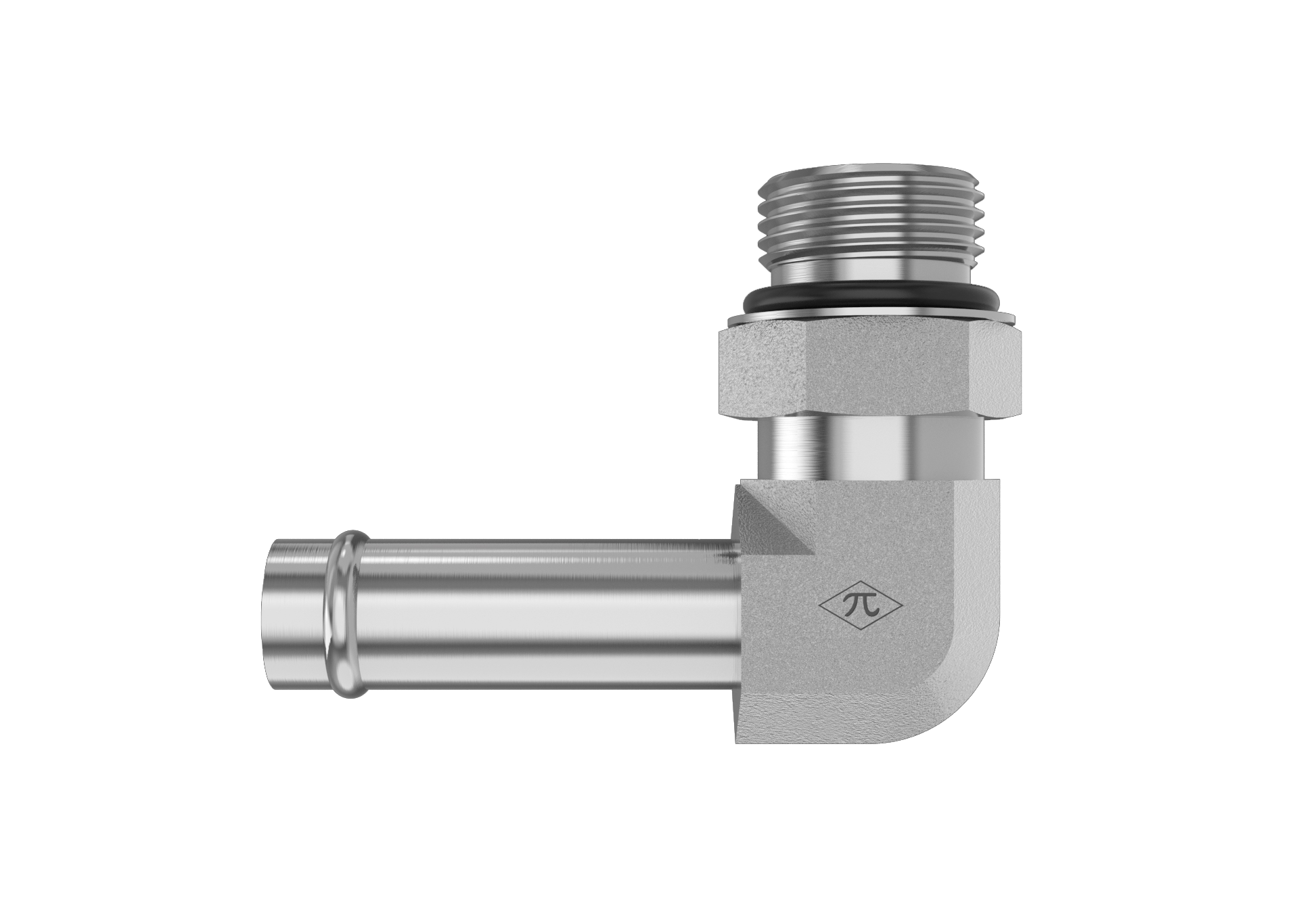

1-1/4" Beaded Hose Barb x 1-7/8-12 Male Adjustable ORB

4601-20-24-NWO-FG is a 1-1/4" Beaded Hose Barb x 1-7/8-12 Male Adjustable ORB in the 4601-NWO-FG Series. 90° elbow for connecting bead-end hose to a male adjustable O-ring boss port.

  • Steel
  • Trivalent Zinc
  • Male Adjustable Elbow
$58.84
(0) Write a Review

Product Details

Connection A
TypeBeaded Hose Barb
Hose ID1-1/4"
StandardSAE J1231-2
Connection B
TypeMale Adjustable ORB
Port Size1-7/8-12
StandardSAE J1926
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight1.93 lb
ShapeMale Adjustable Elbow
Cross References
AeroquipFF1167-2420S
Parker25TB-24-20

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
