HGW HYDRAULICS

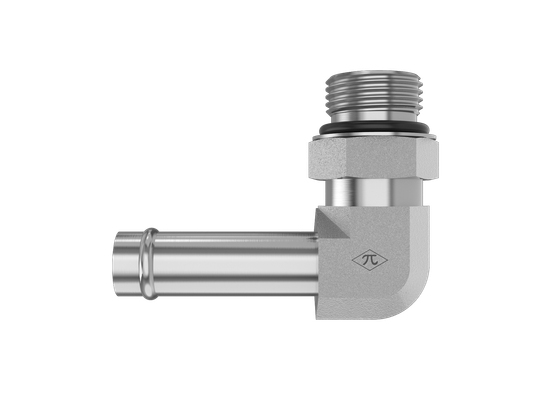

4601-24-24-NWO-FG-VITON

1-1/2" Beaded Hose Barb × 1-7/8-12 Male Adjustable ORB · Male Adjustable Elbow

The HGW 4601-24-24-NWO-FG-VITON is a male adjustable elbow joining 1-1/2" beaded hose barb to 1-7/8-12 male adjustable ORB. Made from trivalent-zinc-plated steel, it uses SAE J1231-2 and SAE J1926 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Adjustable Elbow
$108.21
(0) Write a Review
SKU:
4601-24-24-NWO-FG-VITON

Product Details

Connection A
TypeBeaded Hose Barb
Hose ID1-1/2"
StandardSAE J1231-2
Size1-1/2"
Connection B
TypeMale Adjustable ORB
Port Size1-7/8-12
StandardSAE J1926
Thread Type1-7/8-12 UN
Size1-7/8-12
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight2.94 lb
ShapeMale Adjustable Elbow
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
