HGW HYDRAULICS

4601-24-24-NWO-FG

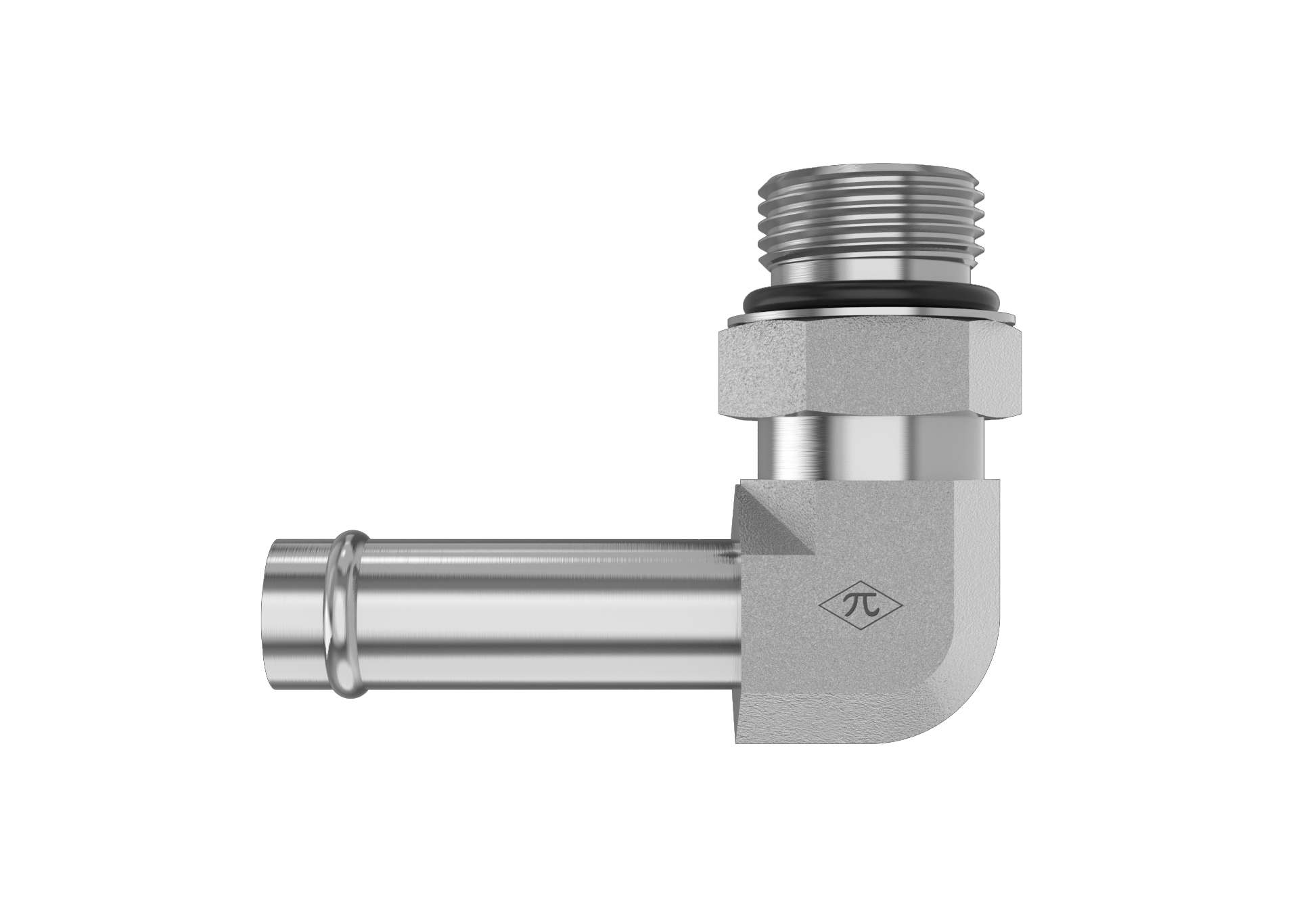

1-1/2" Beaded Hose Barb × 1-7/8-12 Male Adjustable ORB · Male Adjustable Elbow

The HGW 4601-24-24-NWO-FG is a male adjustable elbow joining 1-1/2" beaded hose barb to 1-7/8-12 male adjustable ORB. Made from trivalent-zinc-plated steel, it uses SAE J1231-2 and SAE J1926 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Adjustable Elbow
$33.58
(0) Write a Review
SKU:
4601-24-24-NWO-FG

Product Details

Connection A
TypeBeaded Hose Barb
Hose ID1-1/2"
StandardSAE J1231-2
Size1-1/2"
Connection B
TypeMale Adjustable ORB
Port Size1-7/8-12
StandardSAE J1926
Thread Type1-7/8-12 UN
Size1-7/8-12
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight1.81 lb
ShapeMale Adjustable Elbow
Cross References
AeroquipFF1167-2424S
Parker25TB-24-24

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
