HGW HYDRAULICS

4603-06-04-NWO-FG

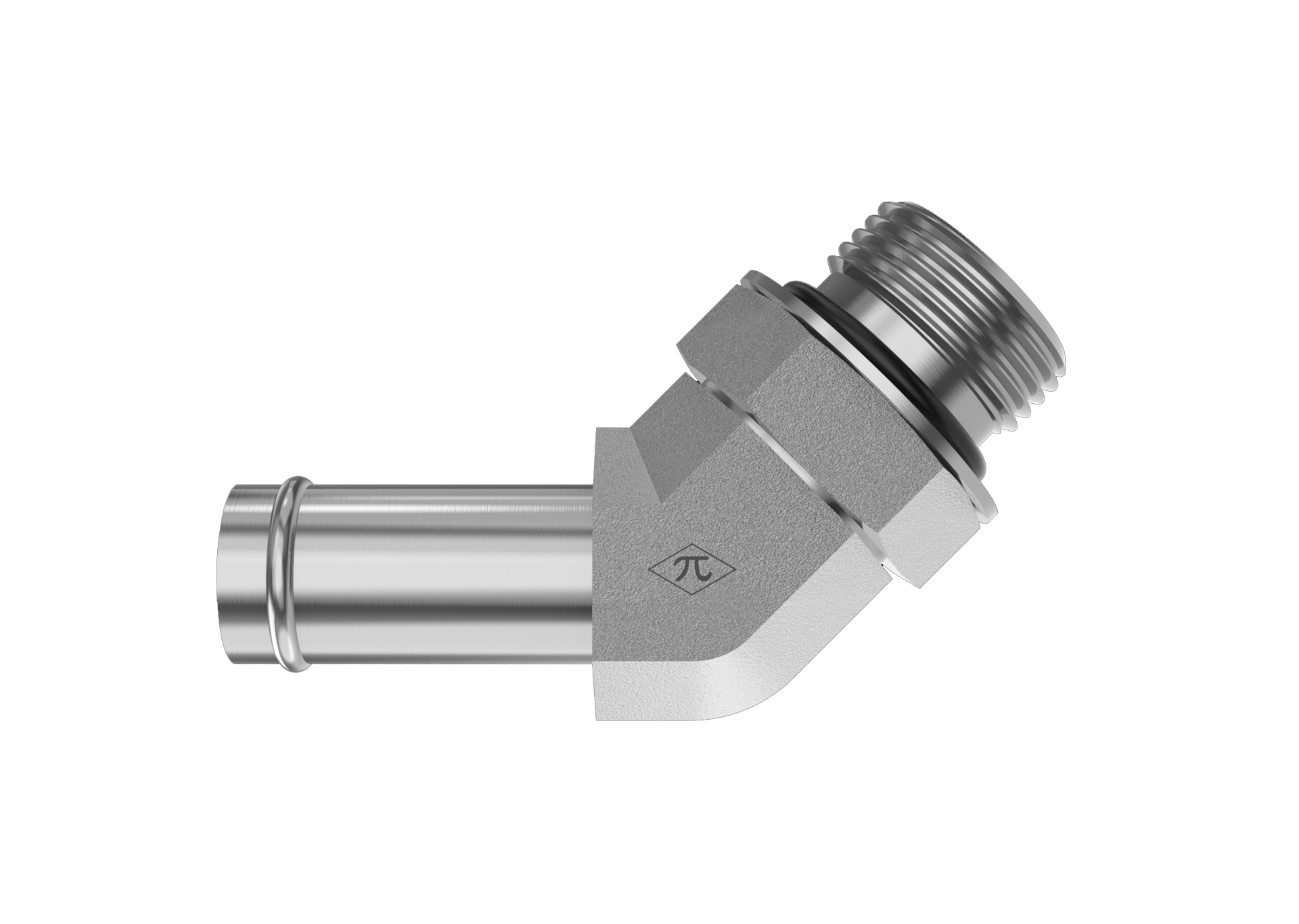

3/8" Beaded Hose Barb × 7/16-20 Male Adjustable ORB · Male Adjustable Elbow

The HGW 4603-06-04-NWO-FG is a male adjustable elbow joining 3/8" beaded hose barb to 7/16-20 male adjustable ORB. Made from trivalent-zinc-plated steel, it uses SAE J1231-2 and SAE J1926 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Adjustable Elbow
$18.43
(0) Write a Review
SKU:
4603-06-04-NWO-FG

Product Details

Connection A
TypeBeaded Hose Barb
Hose ID3/8"
StandardSAE J1231-2
Size3/8"
Connection B
TypeMale Adjustable ORB
Port Size7/16-20
StandardSAE J1926
Thread Type7/16-20 UNF
Size7/16-20
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.09 lb
ShapeMale Adjustable Elbow
Cross References
AeroquipFF1168-0406S
Parker35TB-4-6

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
