HGW HYDRAULICS

4603-08-06-NWO-FG

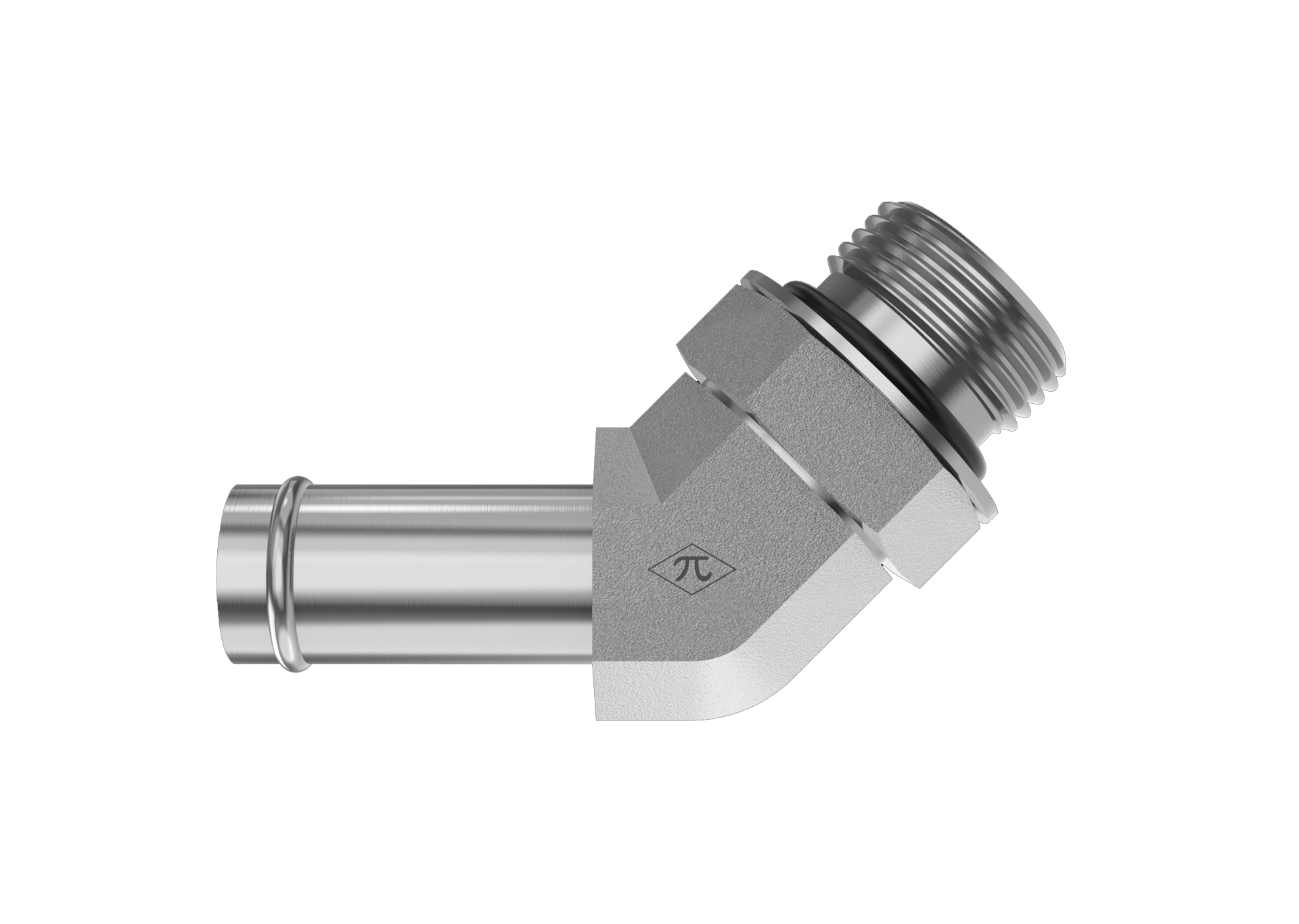

1/2" Beaded Hose Barb × 9/16-18 Male Adjustable ORB · Male Adjustable Elbow

The HGW 4603-08-06-NWO-FG is a male adjustable elbow joining 1/2" beaded hose barb to 9/16-18 male adjustable ORB. Made from trivalent-zinc-plated steel, it uses SAE J1231-2 and SAE J1926 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Adjustable Elbow
$17.64
(0) Write a Review
SKU:
4603-08-06-NWO-FG

Product Details

Connection A
TypeBeaded Hose Barb
Hose ID1/2"
StandardSAE J1231-2
Size1/2"
Connection B
TypeMale Adjustable ORB
Port Size9/16-18
StandardSAE J1926
Thread Type9/16-18 UNF
Size9/16-18
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.15 lb
ShapeMale Adjustable Elbow
Cross References
AeroquipFF1168-0608S
Parker35TB-6-8

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
