HGW HYDRAULICS

4603-24-20-NWO-FG

1-1/2" Beaded Hose Barb x 1-5/8-12 Male Adjustable ORB

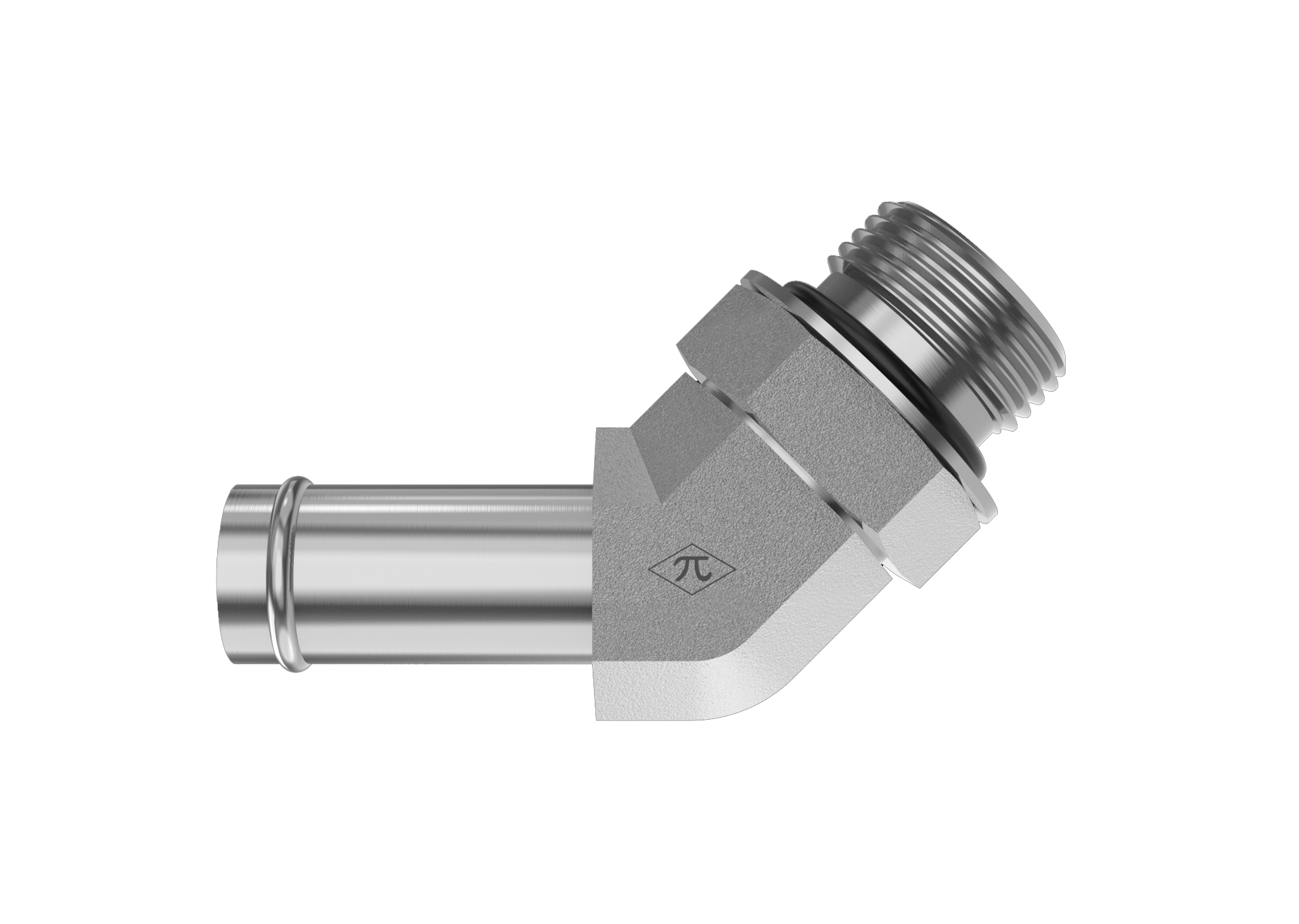

4603-24-20-NWO-FG is a 1-1/2" Beaded Hose Barb x 1-5/8-12 Male Adjustable ORB in the 4603-NWO-FG Series. 45° elbow for connecting bead-end hose to a male adjustable O-ring boss port.

  • Steel
  • Trivalent Zinc
  • Male Adjustable Elbow
$88.36
(0) Write a Review

Product Details

Connection A
TypeBeaded Hose Barb
Hose ID1-1/2"
StandardSAE J1231-2
Connection B
TypeMale Adjustable ORB
Port Size1-5/8-12
StandardSAE J1926
Thread Type1-5/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight1.23 lb
ShapeMale Adjustable Elbow
Cross References
AeroquipFF1168-2024S
Parker35TB-20-24

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
